PLAN 37-139
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

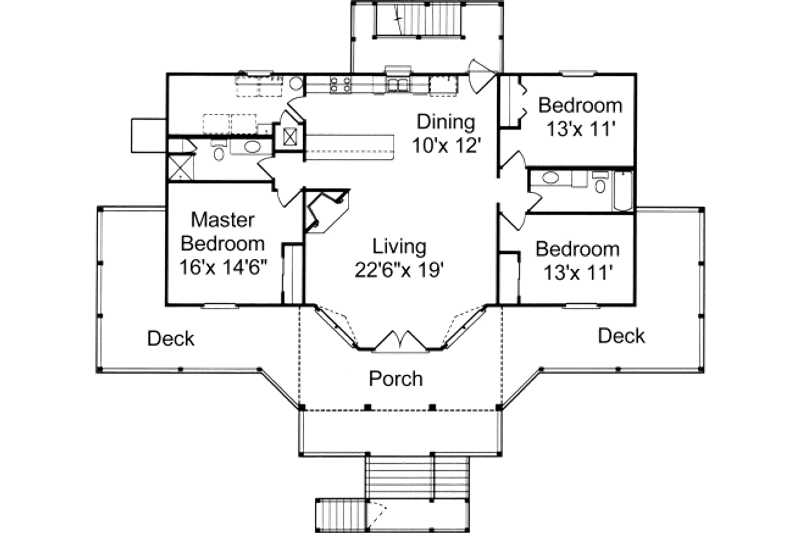

Floor Plans
Full Specs & Features
Dimension
Depth : 54' 6"
Height : 28'
Width : 72'
Area
First Floor: 1649 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Split Bedrooms
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Wrap Around Porch
More
Suited For Vacation Home
Rooms
Bedroom 2:
143 sq/ft width 13' x depth 11'
Bedroom 3:
143 sq/ft width 13' x depth 11'
Dining Room:
120 sq/ft width 10' x depth 12'
Hall Bathroom:
60 sq/ft width 5' x depth 12'
Kitchen:
105 sq/ft width 10' x depth 10' 6"
Laundry Room:
120 sq/ft width 16' x depth 7' 6"
Living Room:
427 sq/ft width 22' 6" x depth 19'
Master Bathroom:
60 sq/ft width 5' x depth 12'
Master Bedroom:
232 sq/ft width 16' x depth 14' 6"
Porch - Front:
432 sq/ft width 24' x depth 18'
Porch - Left:
141 sq/ft width 17' 8" x depth 8'
Porch - Right:
160 sq/ft width 20' x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

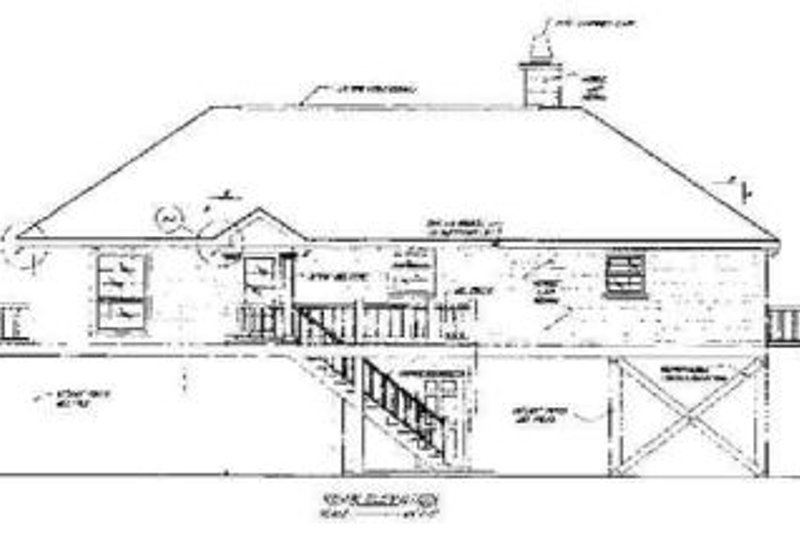

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
