PLAN 118-176

Home > Style > Traditional House Plans

Key Specs

1020
sq ft

0
Beds

0
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 1020 sq ft and has 0 bedrooms and 0 bathrooms.

Floor Plans

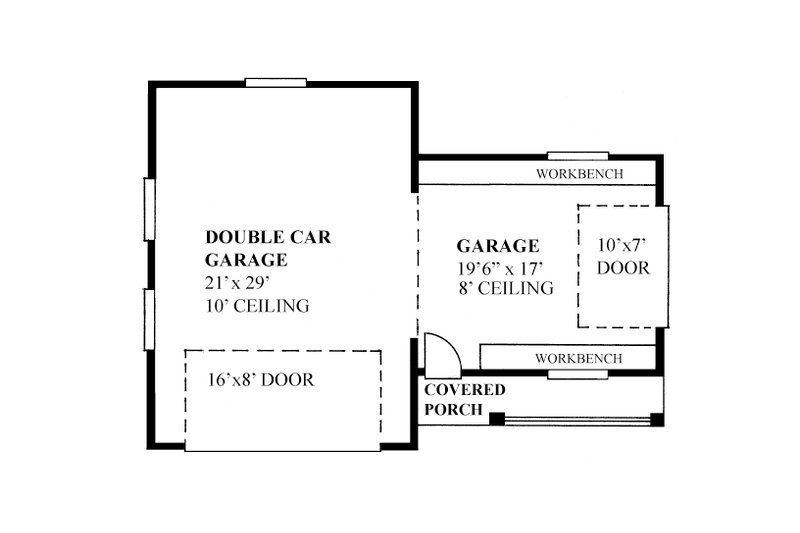

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 30'

Height : 16'

Width : 42'

Area

Garage : 1020 sq/ft

Porch : 80 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 8' ceiling in smaller single garage.

Garage Ceiling : 10'

Roof

Primary Pitch : 5:12

Roof Framing : Truss/Stick

Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2 x 6

Garage Features

Front Entry Garage

RV Garage

Side Entry Garage

Outdoor Spaces

Covered Front Porch

What's Included In This Plan Set

See a sample plan set

Cover sheet with rendering and art floor plans
General notes and specifications
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
Foundation plan at 1/4″=1′-0″
Main floor plan at 1/4″=1′-0″
Second floor plan at 1/4″=1′-0″, if applicable
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
Electrical floor plans
Minimum of two cross sections at 1/4″=1′-0″
Details as required
All four elevations at 1/4″=1′-0″
Generic detail sheet
Plans are engineered by a structural engineer, but not stamped or sealed
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
Assumed soil bearing capacity 1560 psf
Electrical fixtures / switches / smoke alarms by location only on floor plans
Plumbing fixtures by location only on floor plans
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$361.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
