PLAN 923-360
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

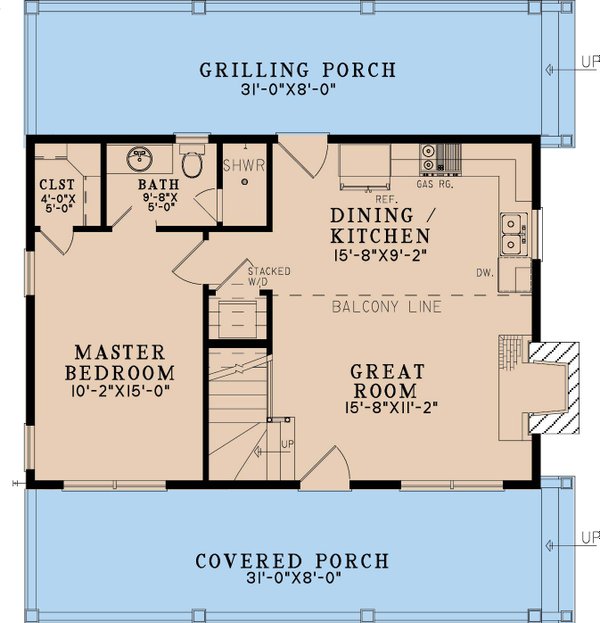

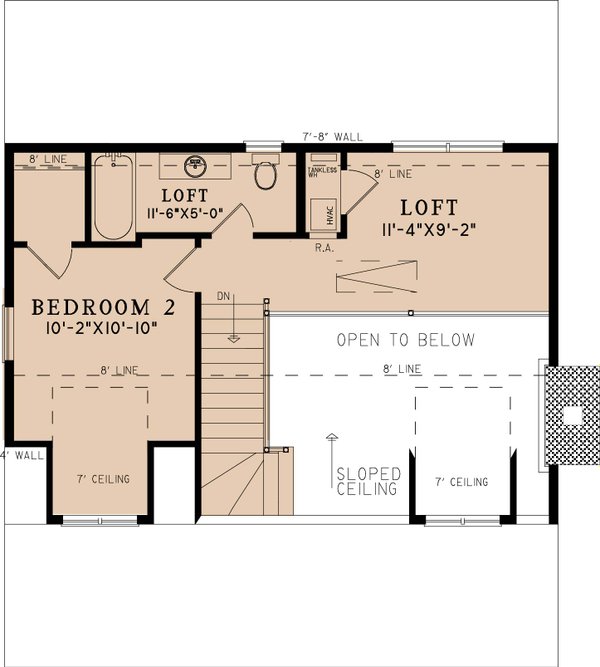

Floor Plans
Full Specs & Features
Dimension
Depth : 37' 4"
Width : 33' 4"
Area
Main Floor : 661 sq/ft
Porch : 486 sq/ft
Upper Floor : 378 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12:12
Roof Framing : 2x8
Roof Load : 45 lbs
Roof Type : shingle
Secondary Pitch : 3:12 (porch)
Exterior Wall Framing
Exterior Wall Finish : lap siding
Framing : 2x6
Insulation : R19
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Additional Room Features
Great Room Living Room
Loft
Outdoor Spaces
Balcony
Grill Deck Sundeck
More
Suited For Vacation Home
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$700.00
$800.00
$1400.00
$1400.00
Foundation
$0.00
$0.00
Framing
$0.00
$299.00
Additional Options
$299.00
$350.00
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
