PLAN 118-117

Photographs may show modified designs.

Architectural House Design - Traditional Exterior - Other Elevation Plan #118-117

Architectural House Design - Traditional Exterior - Rear Elevation Plan #118-117

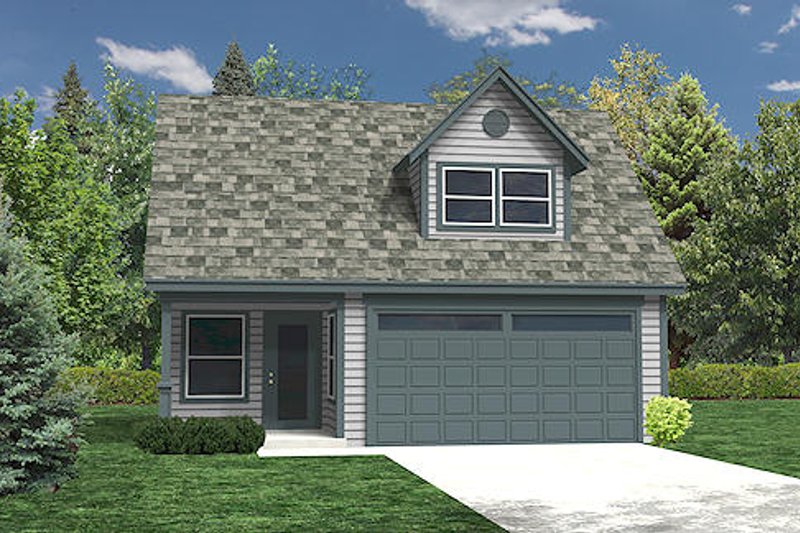

Architectural House Design - Traditional Exterior - Front Elevation Plan #118-117

Architectural House Design - Traditional Floor Plan - Main Floor Plan #118-117

Architectural House Design - Traditional Floor Plan - Upper Floor Plan #118-117

Jump to:
All (7)
Exterior (5)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional House Plans

Key Specs

1058
sq ft

0
Beds

0
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $463.25

You save $81.75 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 118-117

Home > Style > Traditional House Plans

Key Specs

1058
sq ft

0
Beds

0
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 1058 sq ft and has 0 bedrooms and 0 bathrooms.

Floor Plans

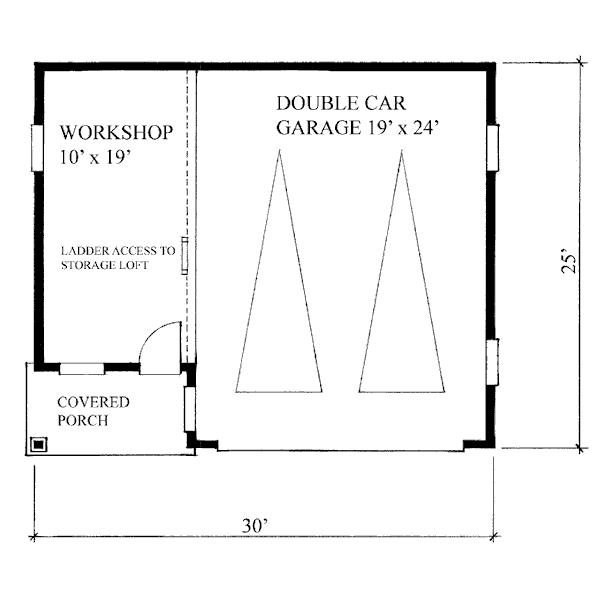

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 25'

Height : 24'

Width : 30'

Area

Garage : 700 sq/ft

Main Floor : 700 sq/ft

Porch : 50 sq/ft

Upper Floor : 358 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Upper Floor: 4' slopes to 8'

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12:12

Roof Framing : stick

Roof Load : 32 lbs psf

Exterior Wall Framing

Exterior Wall Finish : wood siding

Framing : 2"x6"

Additional Room Features

Loft

Storage Area

Workshop

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Balcony

Covered Front Porch

What's Included In This Plan Set

See a sample plan set

Cover sheet with rendering and art floor plans
General notes and specifications
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
Foundation plan at 1/4″=1′-0″
Main floor plan at 1/4″=1′-0″
Second floor plan at 1/4″=1′-0″, if applicable
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
Electrical floor plans
Minimum of two cross sections at 1/4″=1′-0″
Details as required
All four elevations at 1/4″=1′-0″
Generic detail sheet
Plans are engineered by a structural engineer, but not stamped or sealed
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
Assumed soil bearing capacity 1560 psf
Electrical fixtures / switches / smoke alarms by location only on floor plans
Plumbing fixtures by location only on floor plans
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$463.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
