PLAN 3-227
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
This cabin design floor plan is 1732 sq ft and has 3 bedrooms and 2 bathrooms.
Floor Plans

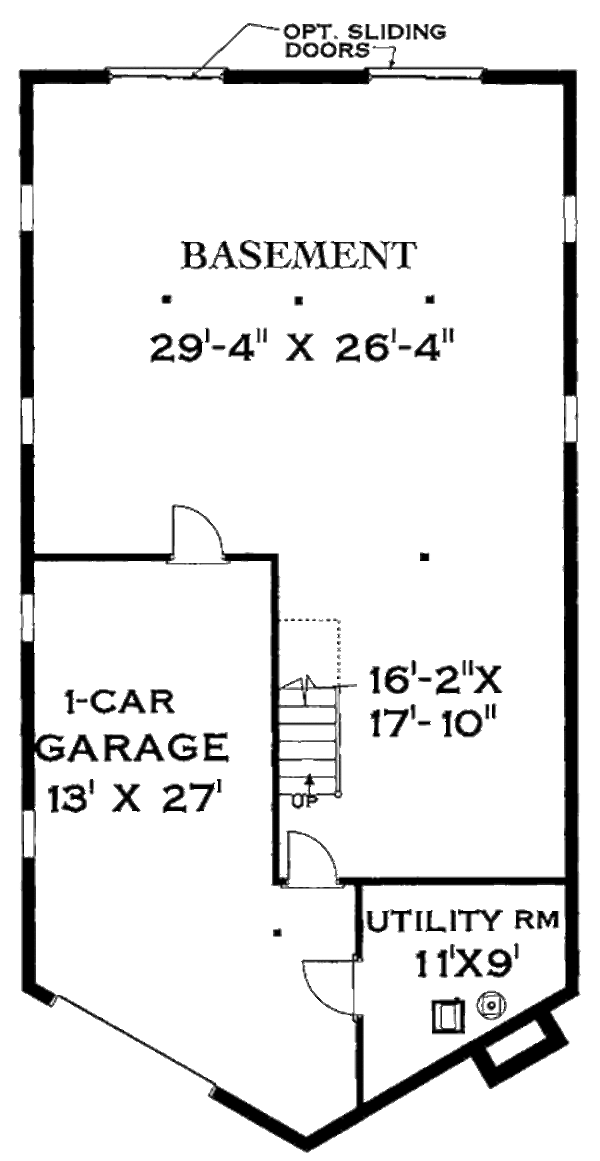

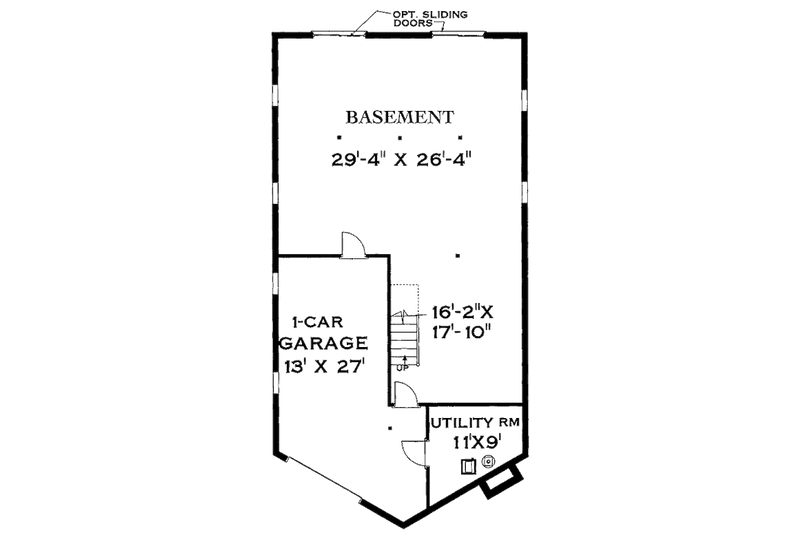

Floor Plan - Lower Floor

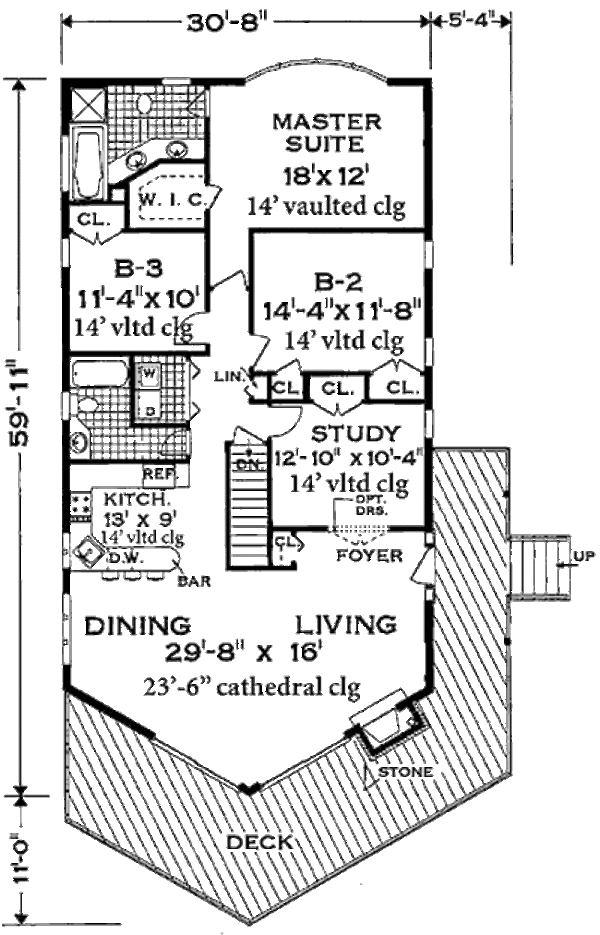

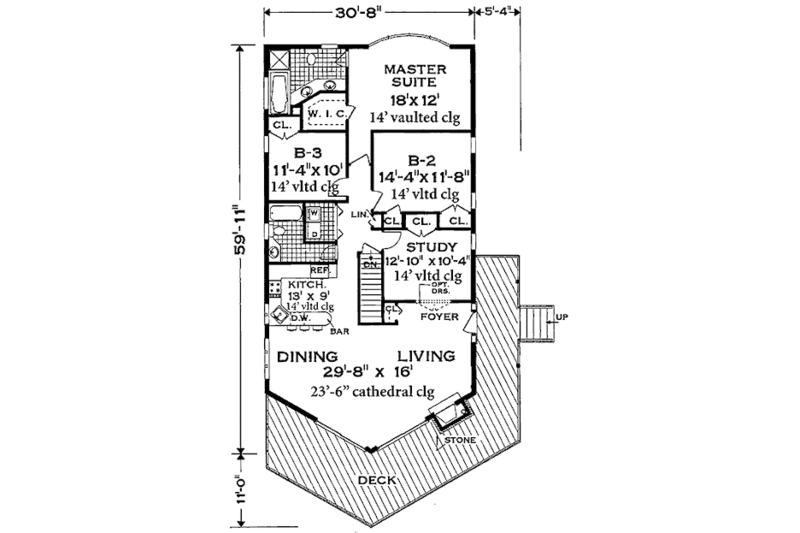

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 60'
Height : 26'
Width : 31'
Area
Basement Unfinished: 1163 sq/ft
First Floor: 1732 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Study/Office: 14'0"
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x6"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Grill Deck Sundeck
Rooms
Bedroom 2:
167 sq/ft width 14' 4" x depth 11' 8"
Bedroom 3:
113 sq/ft width 11' 4" x depth 10'
Master Bedroom:
216 sq/ft width 18' x depth 12'
Study:
132 sq/ft width 12' 10" x depth 10' 4"
What's Included In This Plan Set
Content may vary depending on the size and complexity of the home and the style of the individual designer:
» See important
information before purchasing.
- Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
- Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pole, pier, or slab foundation. All necessary notations and dimensions are included.
- Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item.
- Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a separate diagram.
- Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
- Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.
- General Specifications: provide general instructions and information regarding structure, excavating and grading, masonry and concrete work, carpentry and wood, thermal and moisture protection, and specifications about drywall, tile, flooring, glazing, caulking and sealants.
