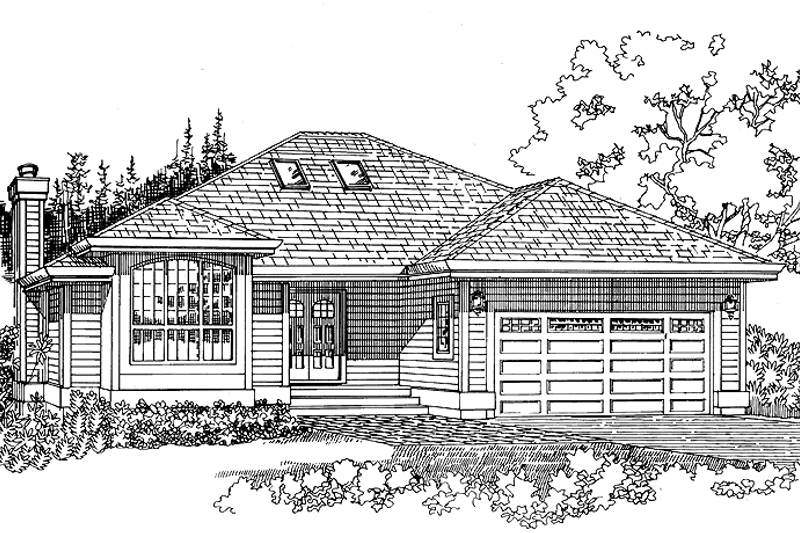

Architectural House Design - Craftsman Exterior - Front Elevation Plan #47-868

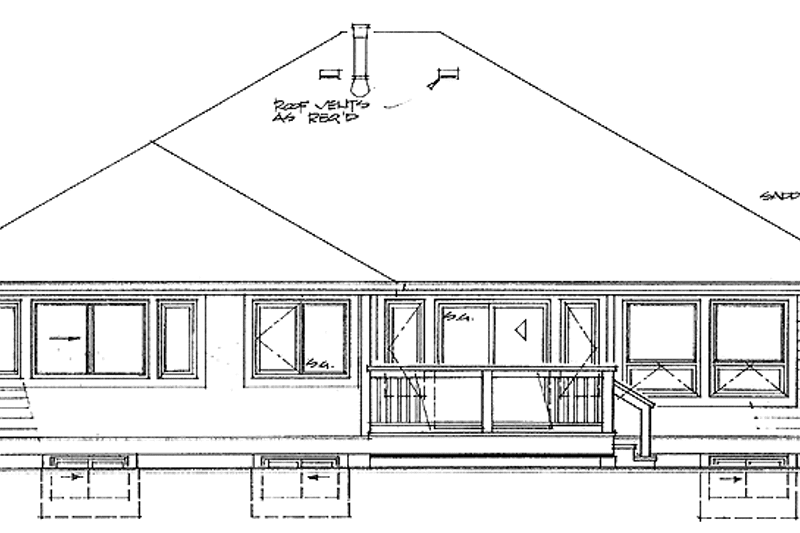

Architectural House Design - Craftsman Exterior - Rear Elevation Plan #47-868

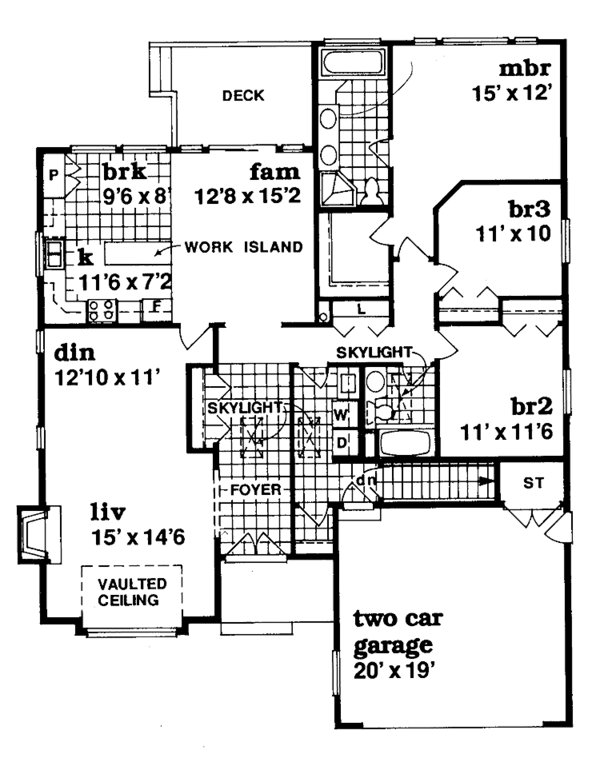

Architectural House Design - Craftsman Floor Plan - Main Floor Plan #47-868

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1911
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$51.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$420.75

Allows you to build one more home for each additional license purchased.

Audio Video Design

$127.50

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$127.50

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Unlimited Use License

$845.75

Allows you to build this home as many times as you want.

Subtotal

NOW $897.60

You save $158.40 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-868

Home > Style > Craftsman

Key Specs

1911
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Horizontal wood siding graces the exterior of this quaint one-story home. Enter through double doors to an entry where a skylight spills its brightness into the living and dining area. The living space has a vaulted ceiling over a full-height window wall and a warming fireplace. The open plan kitchen and its attached family room are ideal for a casual gathering spot. The kitchen features a spacious work island, a pantry, and a breakfast nook. A large rear deck extends beyond the family room. In the master suite are a walk-in closet and bath with His and Hers vanities, corner shower, and whirlpool spa. The family bedrooms share a skylit main bath. The service entrance to the garage holds an alcove for a washer and dryer and the stairway to the basement. Plans include details for both basement and crawlspace foundations.

Floor Plans

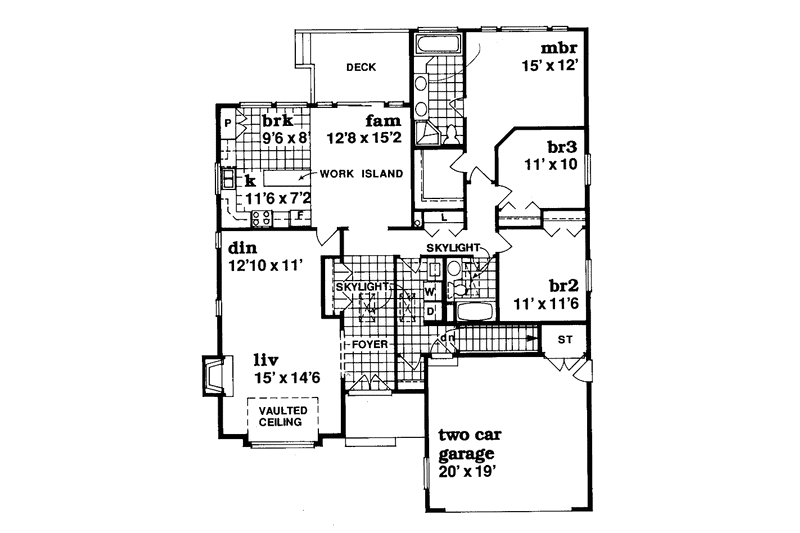

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 61'

Height : 23'

Width : 47'

Area

First Floor: 1911 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Additional Room Features

Family Room Keeping Room

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

10 sq/ft width 2' x depth 5' 4"

Basement Foundation:

2420 sq/ft width 51' 6" x depth 47'

Bedroom 2:

126 sq/ft width 11' 6" x depth 11'

Bedroom 2 Closet:

10 sq/ft width 2' x depth 5' 4"

Bedroom 3:

110 sq/ft width 10' x depth 11'

Bedroom 3 Closet:

10 sq/ft width 2' x depth 5' 4"

Breakfast Room:

6 sq/ft width 8" x depth 9' 6"

Crawlspace Foundation:

2420 sq/ft width 51' 6" x depth 47'

Deck:

118 sq/ft width 9' 6" x depth 12' 6"

Dining Room:

141 sq/ft width 11' x depth 12' 10"

Foyer:

106 sq/ft width 16' 10" x depth 6' 4"

Garage:

380 sq/ft width 19' x depth 20'

Gathering Room:

192 sq/ft width 15' 2" x depth 12' 8"

Hall Bathroom:

50 sq/ft width 8' x depth 6' 4"

Hall Closet:

14 sq/ft width 7' 2" x depth 2'

Kitchen:

82 sq/ft width 7' 2" x depth 11' 6"

Living Room:

217 sq/ft width 14' 6" x depth 15'

Master Bathroom:

89 sq/ft width 14' 6" x depth 6' 2"

Master Bedroom:

180 sq/ft width 12' x depth 15'

Porch - Front:

55 sq/ft width 5' 6" x depth 10'

Storage:

20 sq/ft width 3' 6" x depth 5' 10"

Utility Room:

46 sq/ft width 8' x depth 5' 10"

Walk-In Closet:

46 sq/ft width 7' 6" x depth 6' 2"
