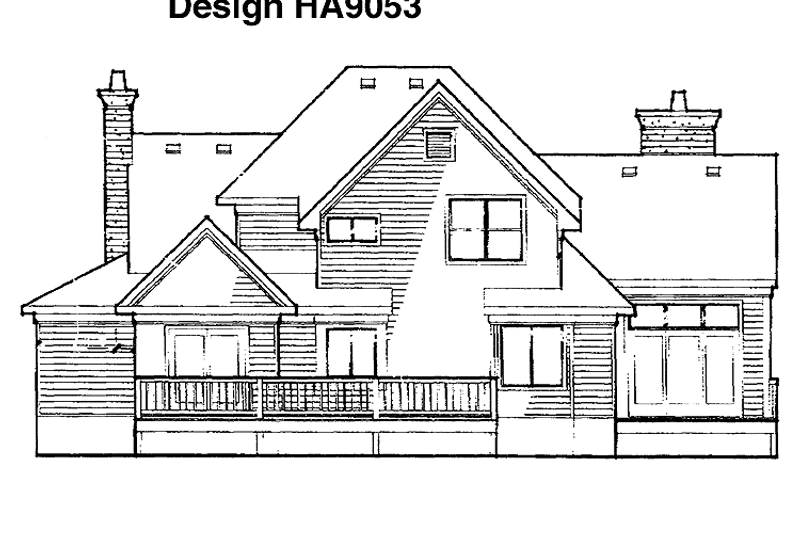

PLAN 120-197
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
1972
sq ft
3
Beds
2.5
Baths
2
Floors
0
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 120-197
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans

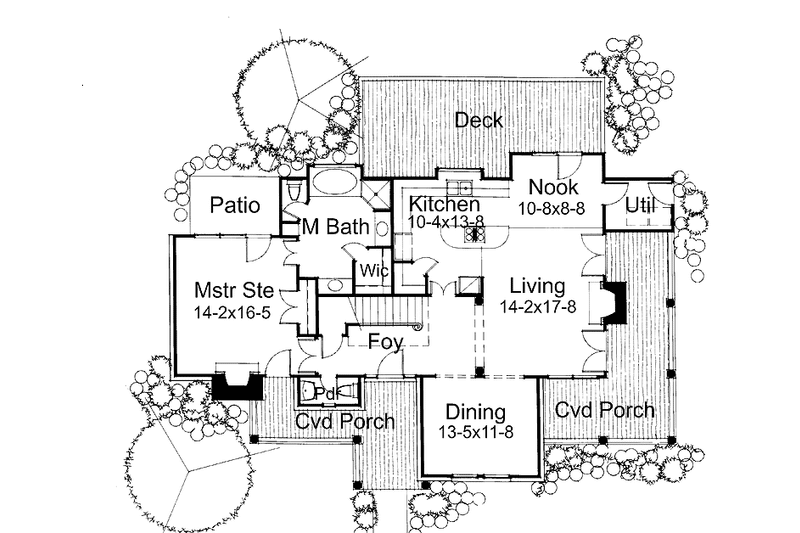

Floor Plan - Main Floor

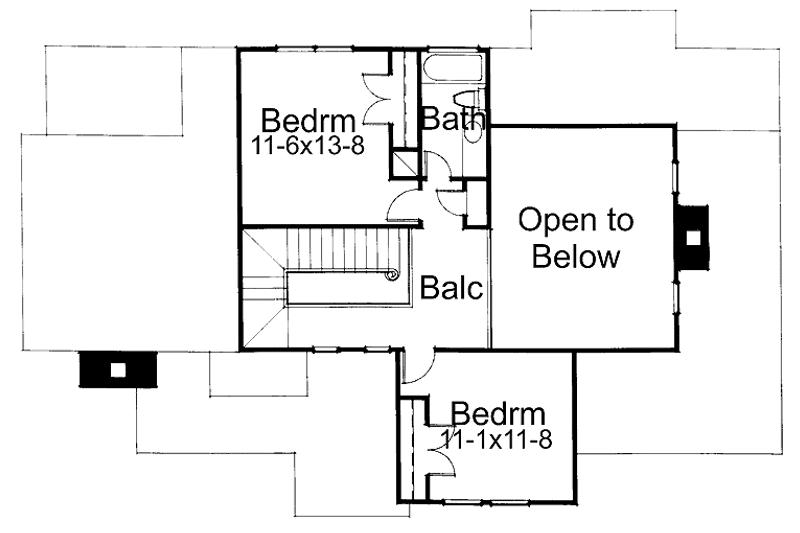

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 40' 6"
Height : 28'
Width : 59' 6"
Area
First Floor: 1427 sq/ft
Second Floor: 545 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Unfinished Future Space
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Deck
Wrap Around Porch
Rooms
3rd BR Closet:
15 sq/ft width 2' x depth 7' 7"
Basement Foundation:
2409 sq/ft width 59' 6" x depth 40' 6"
Bathroom 2:
49 sq/ft width 5' x depth 9' 10"
Bedroom 2:
128 sq/ft width 11' x depth 11' 8"
Bedroom 2 Closet:
15 sq/ft width 2' x depth 7' 11"
Bedroom 3:
157 sq/ft width 11' 6" x depth 13' 8"
Bedroom 3 Closet:
15 sq/ft width 2' x depth 7' 11"
Breakfast Room:
96 sq/ft width 10' 8" x depth 9'
Crawlspace Foundation:
2409 sq/ft width 59' 6" x depth 40' 6"
Deck:
348 sq/ft width 29' x depth 12'
Dining Room:
156 sq/ft width 13' 5" x depth 11' 8"
Foyer:
173 sq/ft width 18' 5" x depth 9' 5"
Gathering Room:
246 sq/ft width 14' 2" x depth 17' 5"
Kitchen:
184 sq/ft width 13' 6" x depth 13' 8"
Master Bathroom:
149 sq/ft width 10' 11" x depth 13' 8"
Master Bedroom:
232 sq/ft width 14' 2" x depth 16' 5"
Master Closet:
23 sq/ft width 4' 3" x depth 5' 5"
Porch - Front:
256 sq/ft width 19' 9" x depth 13'
Porch - Right:
264 sq/ft width 33' x depth 8'
Powder Room:
21 sq/ft width 6' 10" x depth 3' 2"
Slab Foundation:
2409 sq/ft width 59' 6" x depth 40' 6"
Utility Room:
45 sq/ft width 7' 8" x depth 5' 11"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$930.75
$930.75
$1058.25
$1143.25
$1610.75
Foundation
$0.00
$0.00
$335.75
$335.75
Framing
$0.00
$208.25
Additional Options
$165.75
$42.50
$335.75
$140.25
$250.75
$33.15
$72.25
$335.75
$165.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
