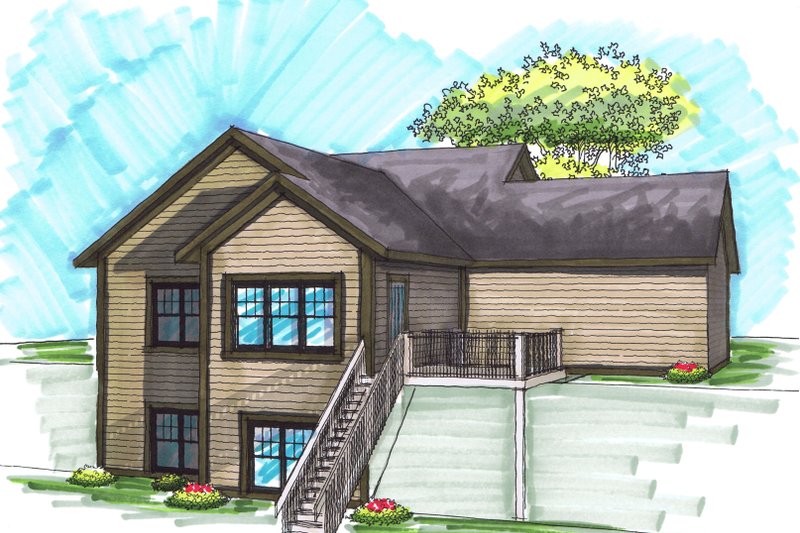

Architectural House Design - Craftsman Exterior - Rear Elevation Plan #70-1021

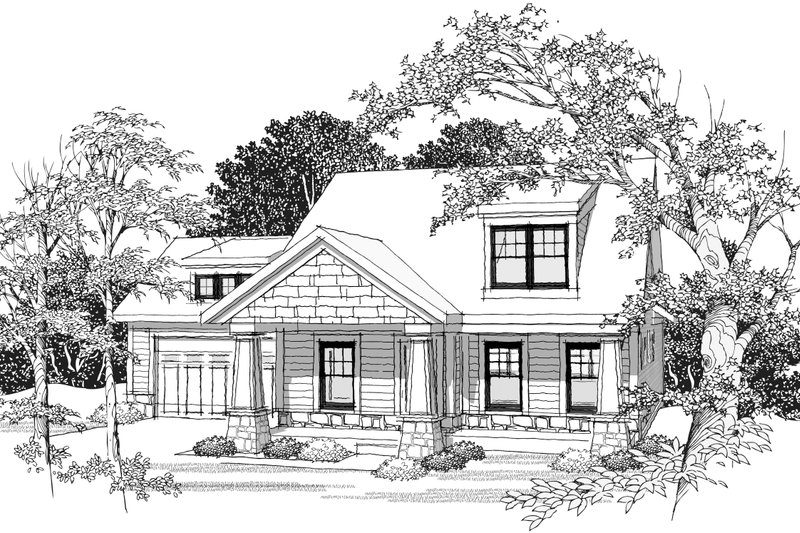

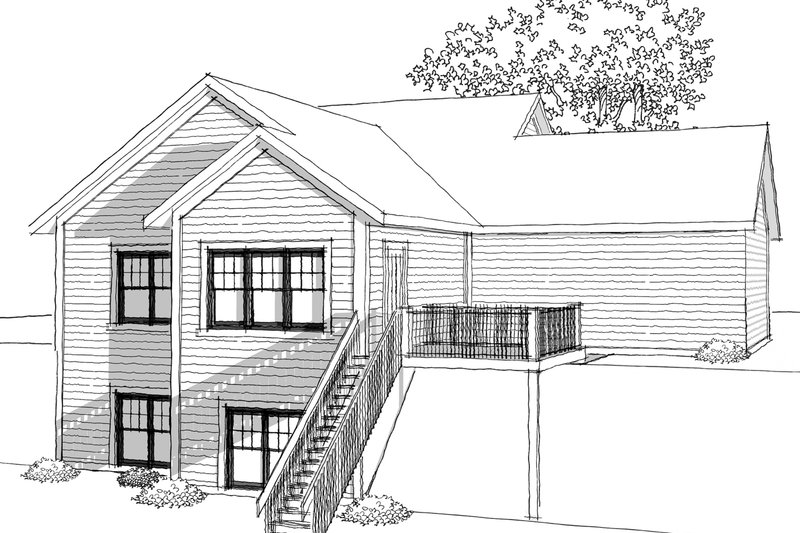

Architectural House Design - Craftsman Photo Plan #70-1021

Architectural House Design - Craftsman Floor Plan - Main Floor Plan #70-1021

Architectural House Design - Craftsman Floor Plan - Lower Floor Plan #70-1021

Jump to:
All (6)
Exterior (2)
Floor plans (2)
Photo (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

1974
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$335.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$68.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$63.75

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $855.10

You save $150.90 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 70-1021

Home > Style > Craftsman

Key Specs

1974
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Strong pillars greet you as you enjoy the spacious porch of this craftsman style home. With a finished lower level, this home is perfect for walk-out lots and offers plenty of living area in just under 2,000 square feet. The master suite lies to the left as you enter and includes a spacious walk-in closet, private bath with dual sinks and privacy from the other bedrooms. An open floor plan draws you to the back of the home where youâ€™ll find a perfectly appointed kitchen, nook, and family room with corner fireplace. A formal dining room defined by gracious pillars lies to the right as you enter the home. In the finished lower level two additional bedrooms and full shared bath await.

Floor Plans

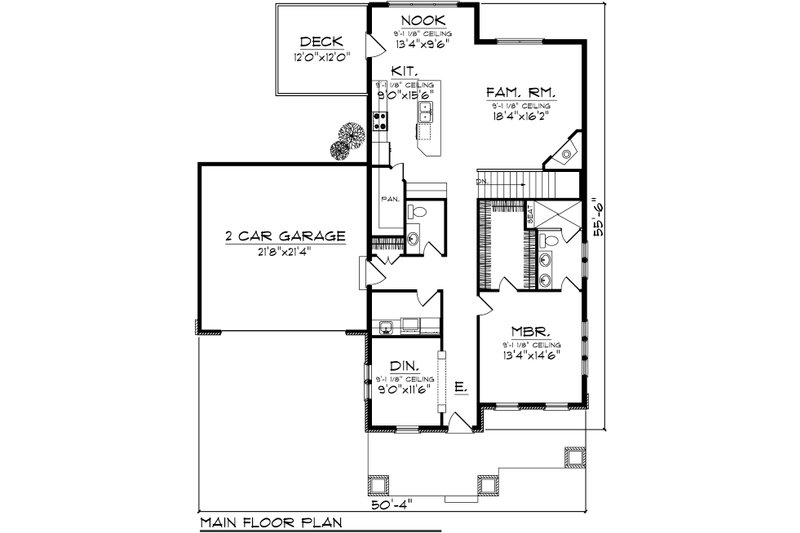

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

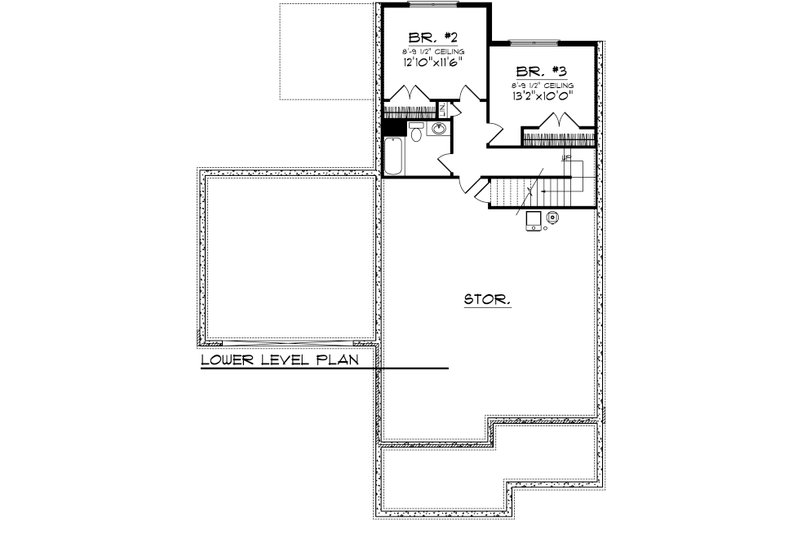

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 55' 6"

Height : 23' 8"

Width : 50' 4"

Area

Basement Living: 510 sq/ft

First Floor: 1464 sq/ft height 9'

Garage: 484 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shake / Stone / Siding

Framing : 2 x 6

Insulation : R-19

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Storage Area

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Grill Deck Sundeck

Rooms

Basement Foundation:

2793 sq/ft width 50' 4" x depth 55' 6"

Bedroom 2:

147 sq/ft width 12' 10" x depth 11' 6"

Bedroom 2 Closet:

13 sq/ft width 6' 6" x depth 2' 1"

Bedroom 3:

131 sq/ft width 13' 2" x depth 10'

Bedroom 3 Closet:

18 sq/ft width 9' x depth 2' 1"

Deck:

144 sq/ft width 12' x depth 12'

Dining Room:

103 sq/ft width 9' x depth 11' 6"

Foyer:

76 sq/ft width 4' 4" x depth 17' 8"

Garage:

462 sq/ft width 21' 8" x depth 21' 4"

Great Room:

296 sq/ft width 18' 4" x depth 16' 2"

Half Bathroom:

35 sq/ft width 5' x depth 7'

Hall:

48 sq/ft width 13' 10" x depth 3' 6"

Hall Bathroom:

58 sq/ft width 8' 4" x depth 7'

Hall Closet:

8 sq/ft width 4' 2" x depth 2' 1"

Kitchen:

139 sq/ft width 9' x depth 15' 6"

Laundry Room:

51 sq/ft width 9' x depth 5' 8"

Master Bathroom:

66 sq/ft width 5' 8" x depth 11' 8"

Master Bedroom:

193 sq/ft width 13' 4" x depth 14' 6"

Master Closet:

85 sq/ft width 7' 4" x depth 11' 8"

Nook:

126 sq/ft width 13' 4" x depth 9' 6"

Porch - Front:

245 sq/ft width 28' 4" x depth 8' 8"

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Questions? Call 1-877-222-1762

Plan Set

5 Copy Set:
$855.10

5 printed plan sets mailed to you.

8 Copy Set:
$901.00

8 printed plan sets mailed to you.

PDF Set:
$1068.45

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1068.45

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1699.15

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Crawlspace:
$335.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$335.75

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$335.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$68.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets:
$63.75

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
