PLAN 84-555

Photographs may show modified designs.

Save
  • Jump to:
  • All (3)
  • Floor plans (1)
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

2538
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$148.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$51.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
$51.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $752.25
You save $132.75 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 84-555

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description


Updated plan is based on an award winning design, & it has all of the best features. Large family & kitchen for entertaining. Bedrooms with large closets which are close to the laundry room. Private master suite with dramatic bath & oversized closet. Note the guest bath has access to the back porch for pool parties!

Full Specs & Features


Dimension

Depth : 79' 10"

Height : 27' 2"

Width : 69' 10"

Area

First Floor: 2538 sq/ft height 9'

Garage: 619 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 8'

Main Ceiling : 10'

Roof

Primary Pitch : 10:12

Roof Framing : stick

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : brick, stone

Framing : 2"x4"

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Main Floor Laundry

Master Sitting Area

Garage Features

Rear Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Code Compliance

Irc 2003

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

132 sq/ft width 12' x depth 11'

Bedroom 4:

124 sq/ft width 10' 6" x depth 11' 10"

Dinette:

143 sq/ft width 11' x depth 13'

Dining Room:

143 sq/ft width 11' x depth 13'

Family Room:

360 sq/ft width 20' x depth 18'

Garage:

553 sq/ft width 19' 8" x depth 28' 2"

Kitchen:

181 sq/ft width 12' 8" x depth 14' 4"

Master Suite:

245 sq/ft width 13' 6" x depth 18' 2"

Porch - Rear:

206 sq/ft width 27' 6" x depth 7' 6"

Study:

132 sq/ft width 12' x depth 11'

What's Included In This Plan Set


  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale

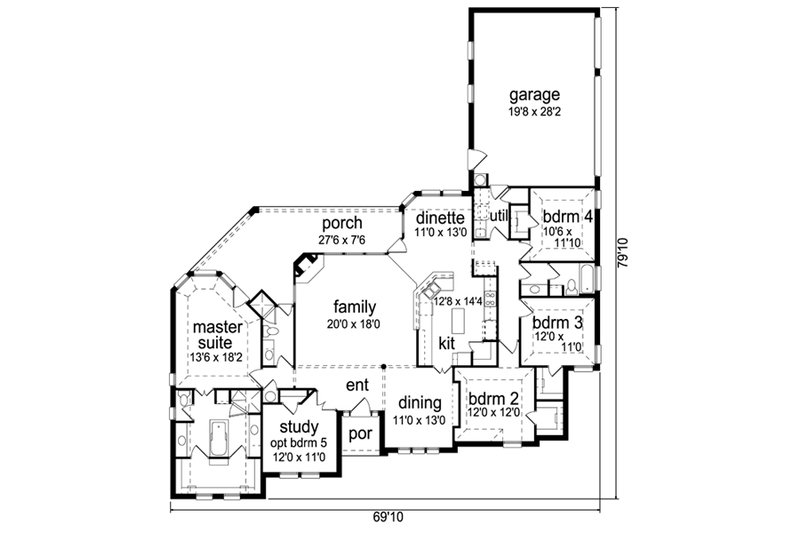

  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

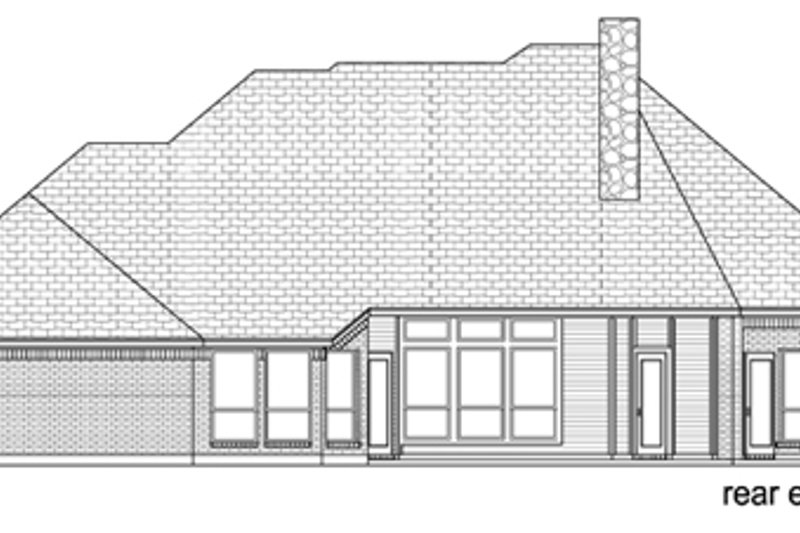

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.
Questions? Call 1-877-222-1762

Plan Set

5 Copy Set:
$752.25
5 printed plan sets mailed to you.
8 Copy Set:
$816.00
8 printed plan sets mailed to you.
PDF Set:
$913.75
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$960.50
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$1585.25
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set:
$701.25
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$148.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$51.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$51.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
