PLAN 118-104
2682
sq ft
6
Beds
3
Baths
2
Floors
0
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
This floor plan is 2682 sq ft and has 6 bedrooms and 3 bathrooms.
Floor Plans

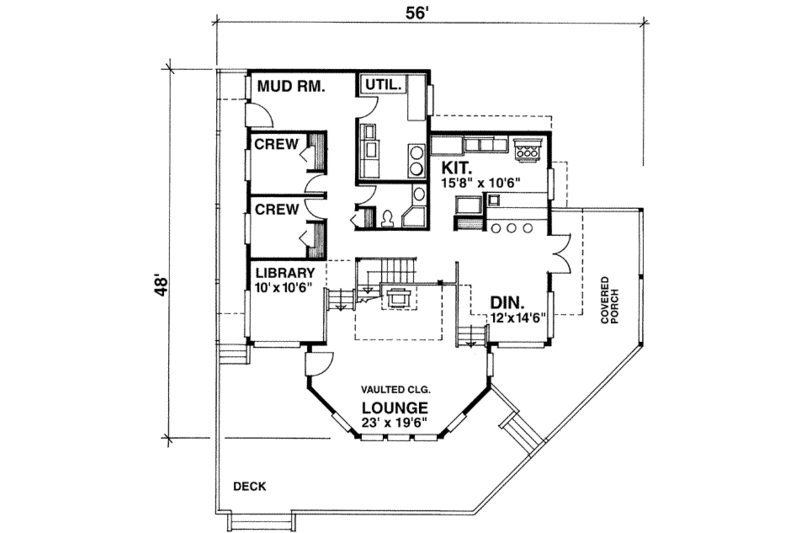

Floor Plan - Main Floor

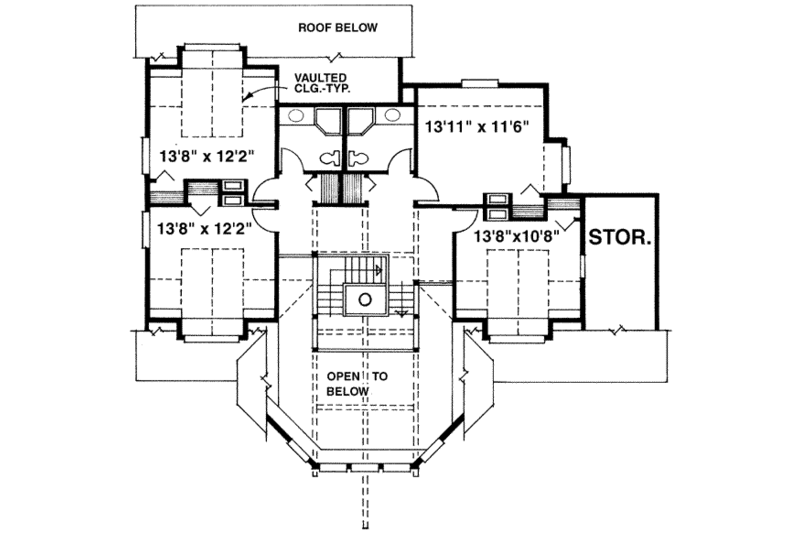

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 48'
Height : 32'
Width : 56'
Area
Bonus : 144 sq/ft
Main Floor : 1559 sq/ft
Upper Floor : 1123 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12:12
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Upstairs Master Bedrooms
Kitchen Features
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
More
Suited For Vacation Home
What's Included In This Plan Set
- Cover sheet with rendering and art floor plans
- General notes and specifications
- Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
- Foundation plan at 1/4″=1′-0″
- Main floor plan at 1/4″=1′-0″
- Second floor plan at 1/4″=1′-0″, if applicable
- Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
- Electrical floor plans
- Minimum of two cross sections at 1/4″=1′-0″
- Details as required
- All four elevations at 1/4″=1′-0″
- Generic detail sheet
- Plans are engineered by a structural engineer, but not stamped or sealed
- Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
- Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
- Assumed soil bearing capacity 1560 psf
- Electrical fixtures / switches / smoke alarms by location only on floor plans
- Plumbing fixtures by location only on floor plans
- Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
