Key Specs
2701
sq ft
3
Beds
3
Baths
1
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 320-462
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

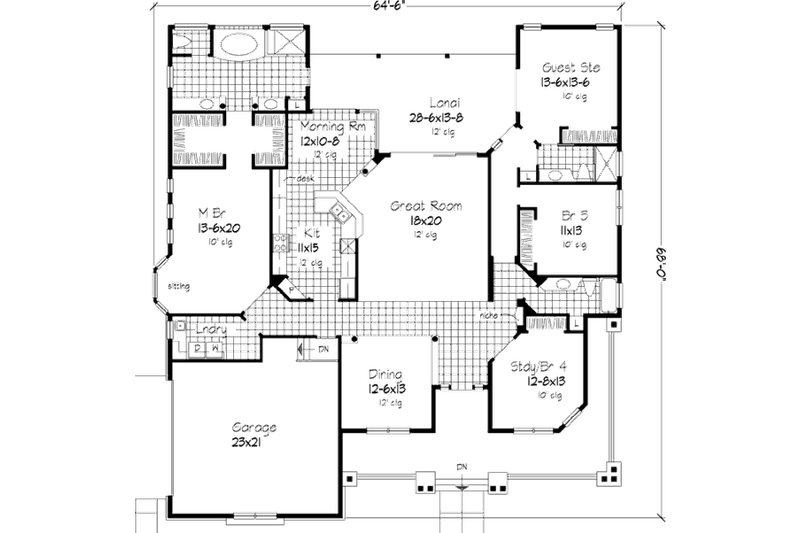

Floor Plans
Full Specs & Features
Dimension
Depth : 68'
Height : 23'
Width : 65'
Area
First Floor: 2701 sq/ft height 10'
Exterior Wall Framing
Exterior Wall Finish : wood siding
Framing : 2"x6"
Bedroom Features
Guest Suite
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Master Sitting Area
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 3:
143 sq/ft width 11' x depth 13'
Den:
164 sq/ft width 12' 8" x depth 13'
Dining Room:
162 sq/ft width 12' 6" x depth 13'
Garage:
525 sq/ft width 25' x depth 21'
Great Room:
360 sq/ft width 18' x depth 20'
Guest Bedroom:
209 sq/ft width 15' 6" x depth 13' 6"
Kitchen:
165 sq/ft width 11' x depth 15'
Lanai:
389 sq/ft width 28' 6" x depth 13' 8"
Master Bedroom:
281 sq/ft width 13' 6" x depth 20' 10"
Morning Room:
128 sq/ft width 12' x depth 10' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1564.00
Foundation
$0.00
Additional Options
$85.00
$33.15
$85.00
$68.00
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
