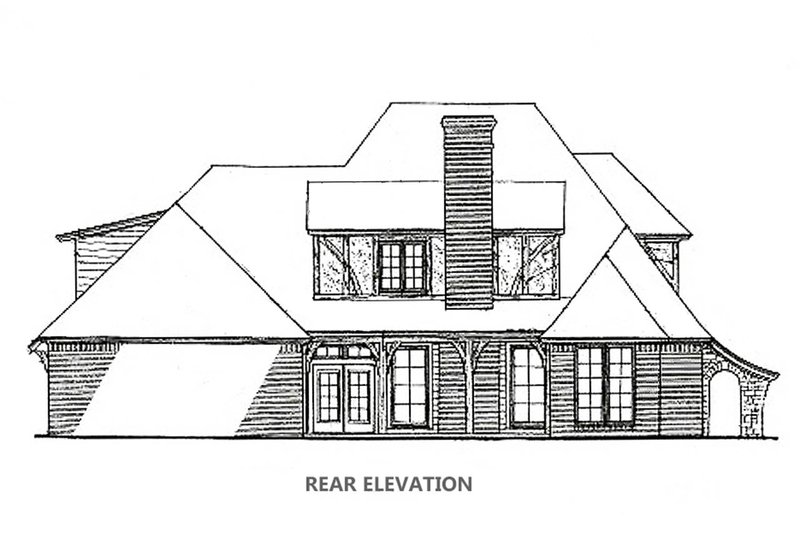

Architectural House Design - Tudor Exterior - Rear Elevation Plan #310-653

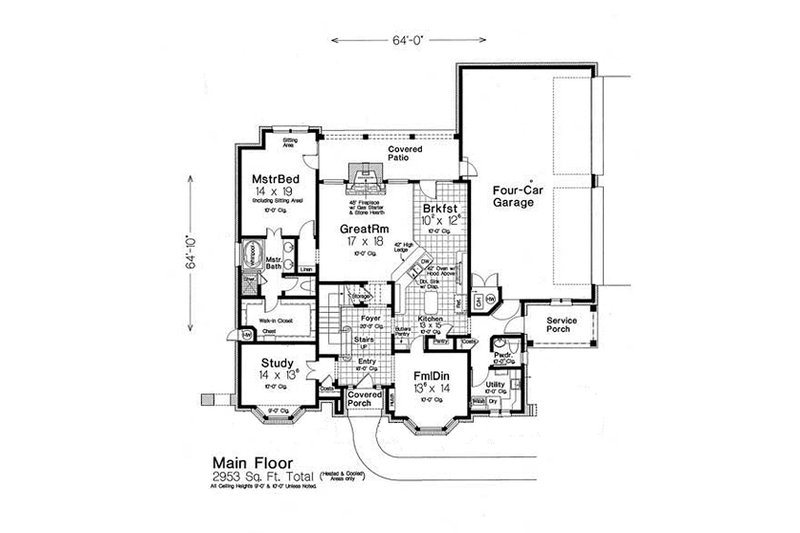

Architectural House Design - Tudor Floor Plan - Main Floor Plan #310-653

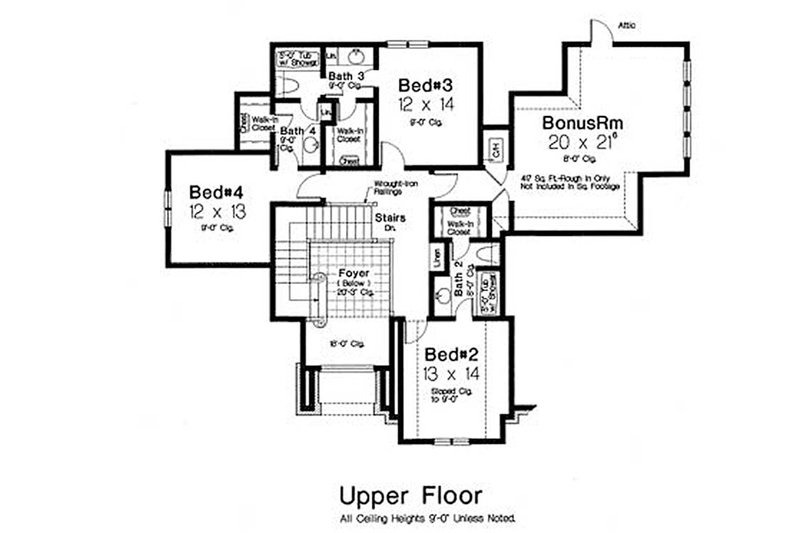

Architectural House Design - Tudor Floor Plan - Upper Floor Plan #310-653

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Tudor House Plans

Key Specs

2953
sq ft

4
Beds

3.5
Baths

2
Floors

4
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$42.50/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$0.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $1015.75

You save $179.25 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 310-653

Home > Style > Tudor House Plans

Key Specs

2953
sq ft

4
Beds

3.5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This tudor design floor plan is 2953 sq ft and has 4 bedrooms and 3.5 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 64' 10"

Height : 32' 8"

Width : 64'

Area

Bonus: 417 sq/ft

First Floor: 2025 sq/ft height 10'

Porch: 970 sq/ft

Second Floor: 928 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Roof Framing : Stick Framing

Roof Load : 40 psf

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Play Flex Room

Storage Area

Garage Features

Oversized Garage

Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath

Rooms

Bathroom 2:

65 sq/ft width 7' 6" x depth 8' 9"

Bedroom 2:

182 sq/ft width 13' x depth 14'

Bedroom 2 Closet:

24 sq/ft width 4' x depth 6'

Bedroom 3:

168 sq/ft width 12' x depth 14'

Bedroom 3 Closet:

42 sq/ft width 6' x depth 7'

Bedroom 4:

156 sq/ft width 12' x depth 13'

Bedroom 4 Closet:

25 sq/ft width 4' x depth 6' 3"

Bonus Room - Finished:

430 sq/ft width 20' x depth 21' 6"

Breakfast:

127 sq/ft width 10' 2" x depth 12' 6"

Dining Room:

189 sq/ft width 13' 6" x depth 14'

Foyer:

120 sq/ft width 8' x depth 15'

Garage:

902 sq/ft width 22' x depth 41'

Great Room:

306 sq/ft width 17' x depth 18'

Kitchen:

195 sq/ft width 13' x depth 15'

Master Bathroom:

100 sq/ft width 10' x depth 10'

Master Bedroom:

266 sq/ft width 14' x depth 19'

Master Sitting Area:

30 sq/ft width 3' x depth 10'

Master Walk-In Closet:

104 sq/ft width 13' x depth 8'

Porch - Front:

35 sq/ft width 7' x depth 5'

Porch - Rear:

84 sq/ft width 7' x depth 12'

Powder Room:

25 sq/ft width 5' x depth 5'

Study:

189 sq/ft width 14' x depth 13' 6"

Utility Room:

72 sq/ft width 9' x depth 8'
