Key Specs
4084
sq ft
4
Beds
3.5
Baths
1
Floors
3
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-2460
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 65'
Height : 28' 2"
Width : 68'
Area
Garage : 908 sq/ft
Lower Floor : 1486 sq/ft
Main Floor : 2598 sq/ft
Storage : 744 sq/ft
Ceiling
Ceiling Details : 10'-0" ML celling in the Front Entry, Great Room, Kitchen, Informal eating area, Master Bedroom, and flex Rm.
Lower Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 7/12
Roof Framing : Stick - Dimensional Lumber
Secondary Pitch : 12/12
Exterior Wall Framing
Framing : 2x4
Bedroom Features
Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Media Room
Mud Room
Play Flex Room
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria

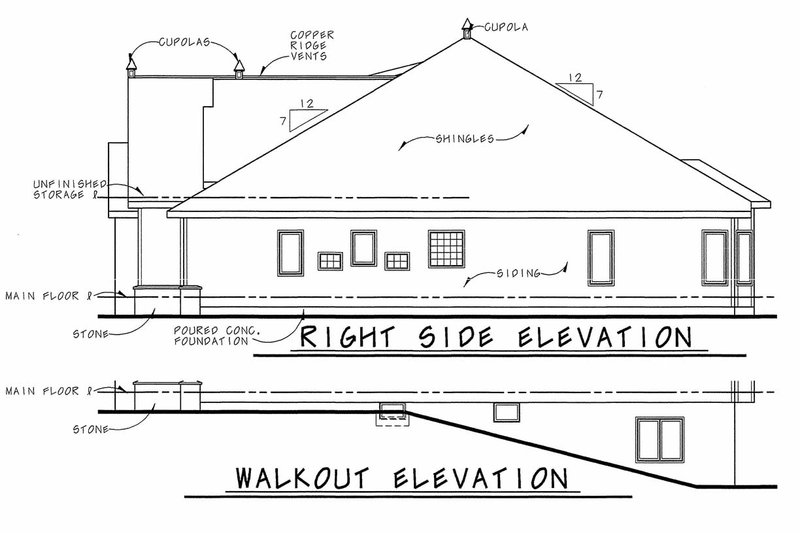

- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Plan Set
$2732.75
$3157.75
$3791.00
$4216.00
Foundation
$0.00
Framing
$0.00
$250.75
Additional Options
$250.75
$212.50
$140.25
$33.15
$140.25
$165.75
$425.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
