PLAN 60-934
Photographs may show modified designs.
- Jump to:
- All (5)
- Floor plans (3)
Get Personalized Help
Key Specs
8114
sq ft
4
Beds
4
Baths
2
Floors
4
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 60-934
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans

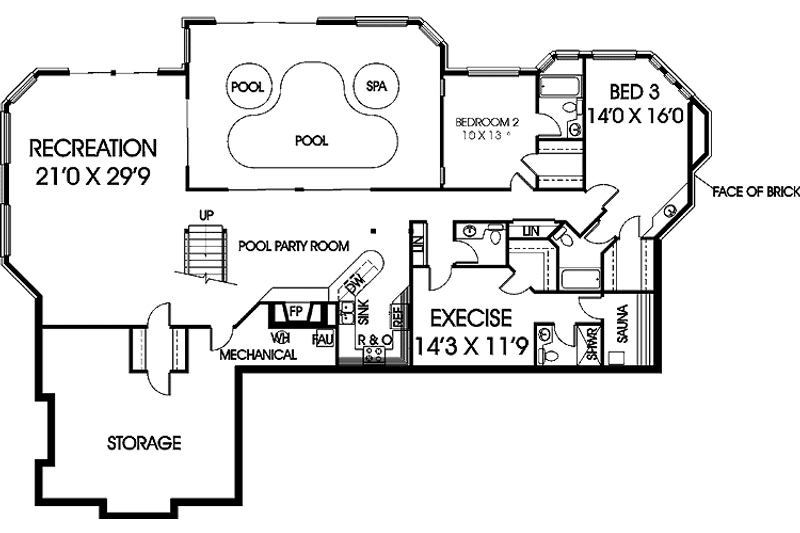

Floor Plan - Lower Floor

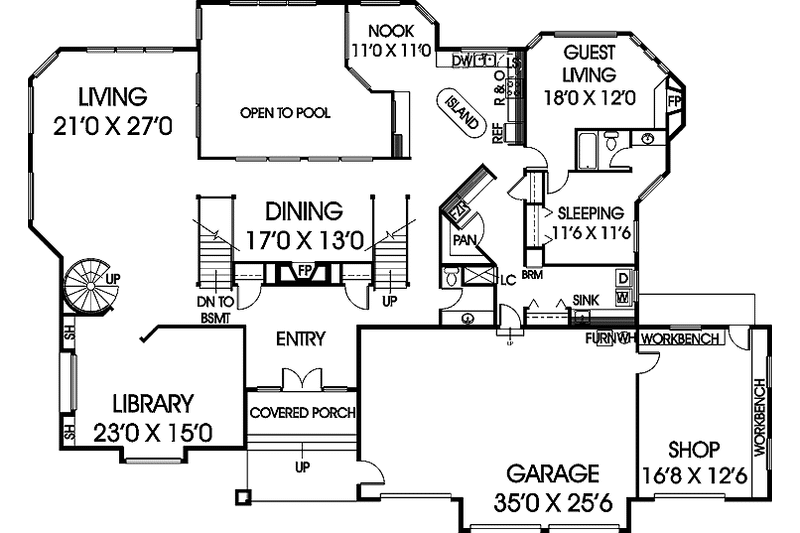

Floor Plan - Main Floor

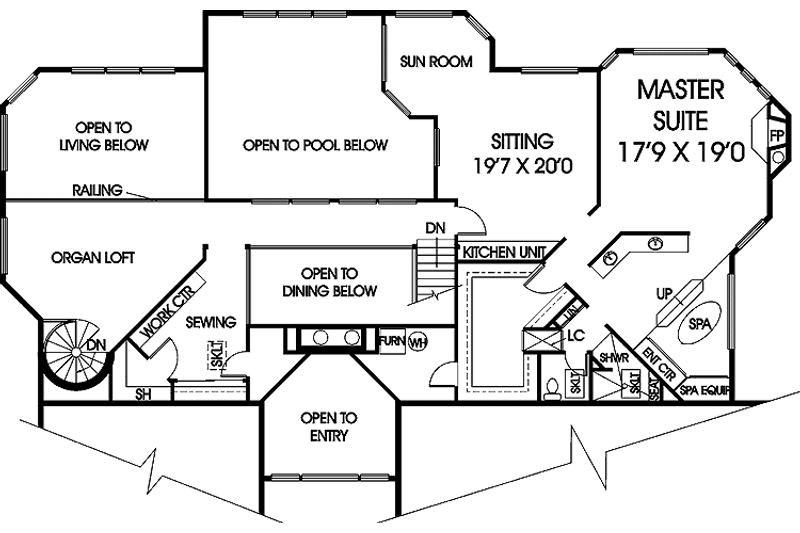

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 68'
Height : 39'
Width : 95'
Area
Basement Living: 2961 sq/ft
First Floor: 3171 sq/ft
Second Floor: 1541 sq/ft
Third Floor: 441 sq/ft
Roof
Primary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Exercise Room
Hobby Rec Room Game Room
Workshop
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 3:
224 sq/ft width 14' x depth 16'
Dining Room:
221 sq/ft width 17' x depth 13'
Exercise Room:
167 sq/ft width 14' 3" x depth 11' 9"
Garage:
892 sq/ft width 35' x depth 25' 6"
Guest Bedroom:
132 sq/ft width 11' 6" x depth 11' 6"
Guest Suite:
216 sq/ft width 18' x depth 12'
Library:
345 sq/ft width 23' x depth 15'
Living Room:
567 sq/ft width 21' x depth 27'
Master Suite:
337 sq/ft width 17' 9" x depth 19'
Nook:
121 sq/ft width 11' x depth 11'
Recreation Room:
624 sq/ft width 21' x depth 29' 9"
Shop:
208 sq/ft width 16' 8" x depth 12' 6"
What's Included In This Plan Set
- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
Plan Set
$1700.00
$1785.00
Foundation
$0.00
Framing
$0.00
Additional Options
$68.00
$85.00
$33.15
$170.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
