PLAN 17-2813
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
This craftsman design floor plan is 1654 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans
Floor Plan - Main Floor

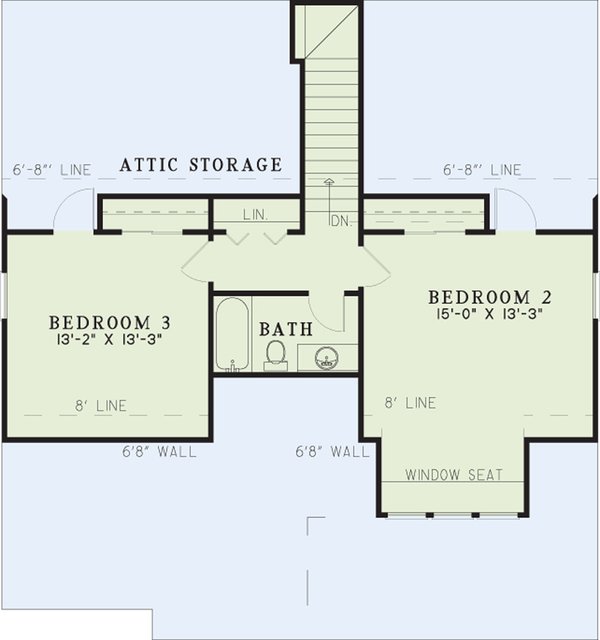

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 50' 2"
Height : 25' 8"
Width : 39'
Area
First Floor: 1048 sq/ft height 9'
Garage: 411 sq/ft
Porch: 246 sq/ft
Second Floor: 606 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Storage Area
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
198 sq/ft width 15' x depth 13' 3"
Bedroom 3:
174 sq/ft width 13' 2" x depth 13' 3"
Dining Room:
131 sq/ft width 9' 10" x depth 13' 4"
Great Room:
255 sq/ft width 18' 8" x depth 13' 8"
Kitchen:
124 sq/ft width 9' 4" x depth 13' 4"
Master Bedroom:
172 sq/ft width 15' x depth 11' 6"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
