High ceilings and a rear-grilling porch will be focal points when entertaining. The master suite has a ten foot boxed ceiling and lovely private bathroom with a whirlpool tub and large walk-in closet. If a study or home office is desired, consider the fourth bedroom, which is conveniently located next to the kitchen and breakfast room.
Floor Plans

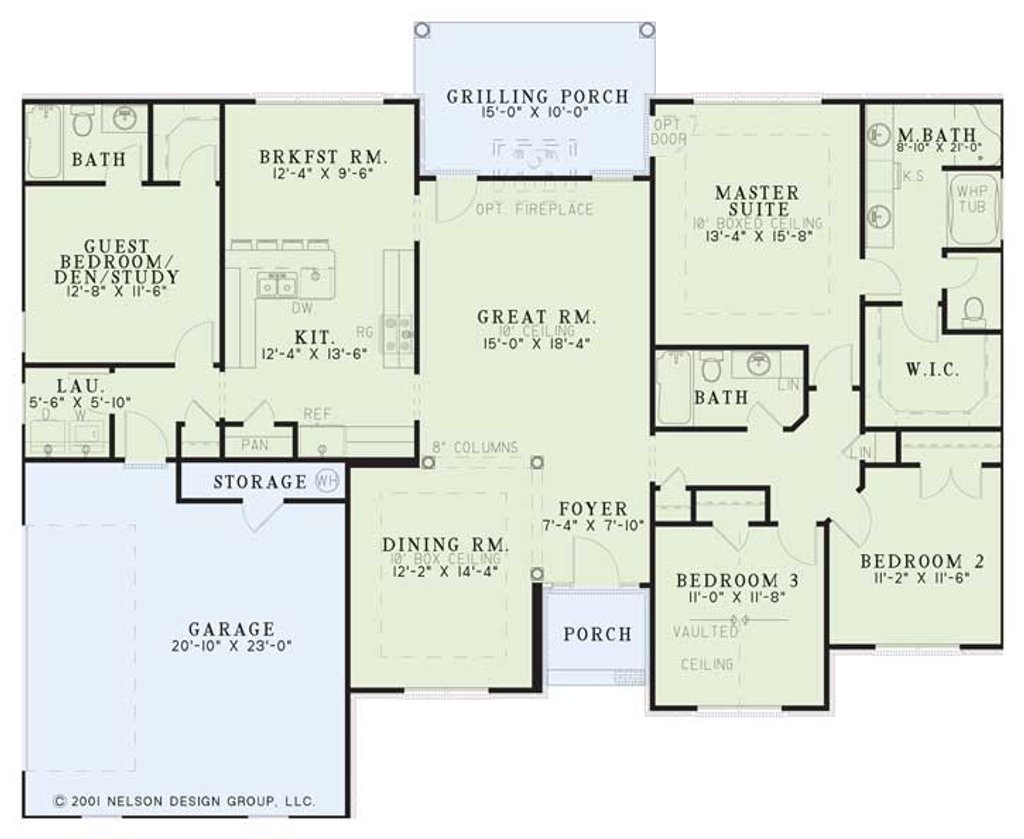

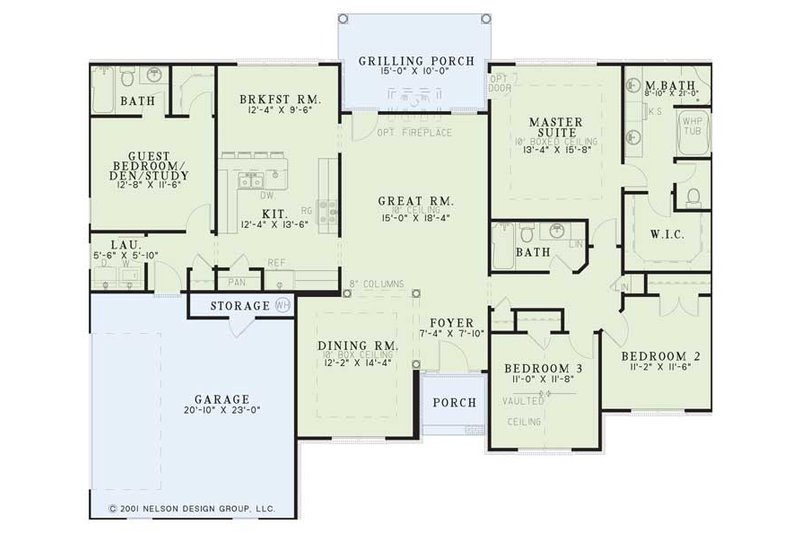

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 52'
Height : 23' 2"
Width : 64' 2"
Area
First Floor: 2022 sq/ft height 9'
Garage: 505 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Rooms
Bedroom 2:
128 sq/ft width 11' 2" x depth 11' 6"
Bedroom 3:
128 sq/ft width 11' x depth 11' 8"
Bedroom 4:
145 sq/ft width 12' 8" x depth 11' 6"
Master Bedroom:
208 sq/ft width 13' 4" x depth 15' 8"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

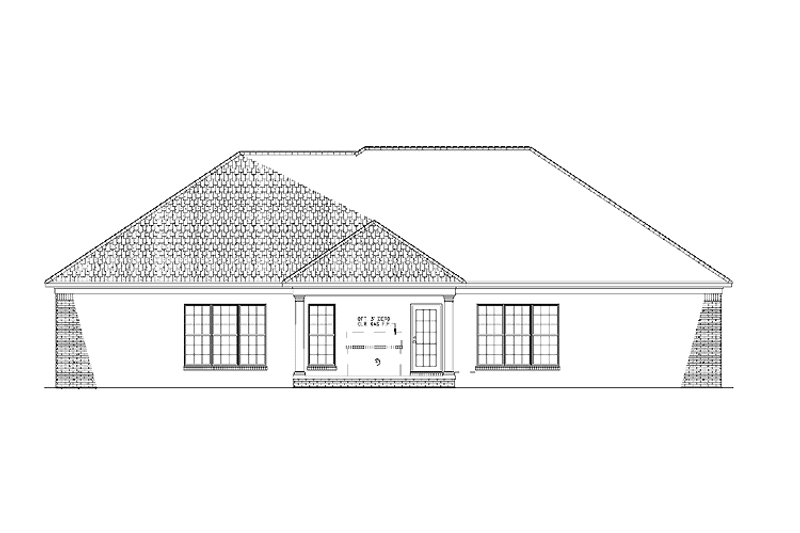

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
