Plan Description

Here's a charming Craftsman bungalow with a side-loading garage that is perfect for a narrow lot. An arched front porch and a dormer combine with a shingle-and-stone exterior to create outstanding curb appeal. With the secondary bedrooms toward the front and the living area and master in the rear, this is a great plan for empty nesters. The dining room sits right next to the family room and the kitchen, the latter boasting a curved island. There is a bonus room upstairs for storage or future expansion.

Floor Plans

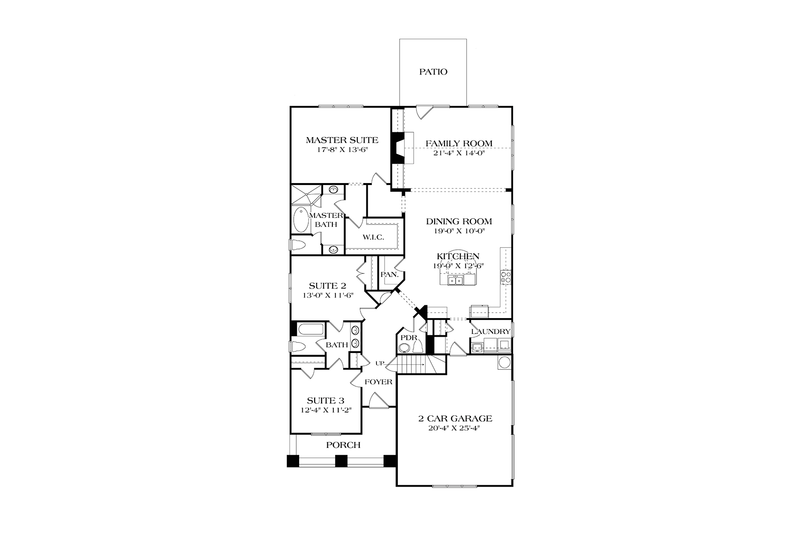

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

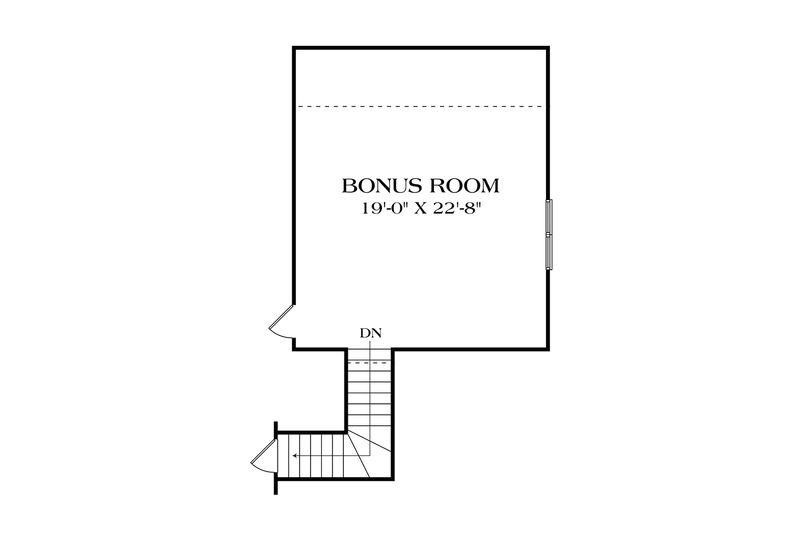

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 68' 2"

Height : 25' 9"

Width : 40'

Area

Bonus: 456 sq/ft

First Floor: 2029 sq/ft height 10'

Garage: 491 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Conventional

Roof Type : Shingle

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : Wood - 2x4

Bedroom Features

Fireplace

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Main Floor Laundry

Open Floor Plan

Unfinished Future Space

Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Jack & Jill Bath

Rooms

Bedroom 2:

width 13' x depth 11' 6"

Bedroom 3:

width 12' 4" x depth 11' 2"

Covered Front Porch:

140 sq/ft

Dining Area:

width 19' x depth 10'

Family Room:

width 21' 4" x depth 14'

Garage:

491 sq/ft width 20' 4" x depth 25' 4"

Kitchen:

width 19' x depth 12' 6"

Master Suite:

width 17' 8" x depth 13' 6"
