PLAN 314-270

Home > Style > Craftsman

Key Specs

2065
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Stunning stone and impressive trusses create a memorable exterior. Inside, the great room is large enough for any gathering; a fireplace adds ambiance. Sliding doors open to a rear porch. The snack bar offers room for many people to sit and enjoy a casual meal, with the open dining room just steps away. On the left, the secluded master suite boasts many amenities, including a bayed sitting area. A home center near the garage holds laundry facilities and a pet corner. Two more bedrooms enjoy walk-in closets and a shared, compartmentalized bath.

Floor Plans

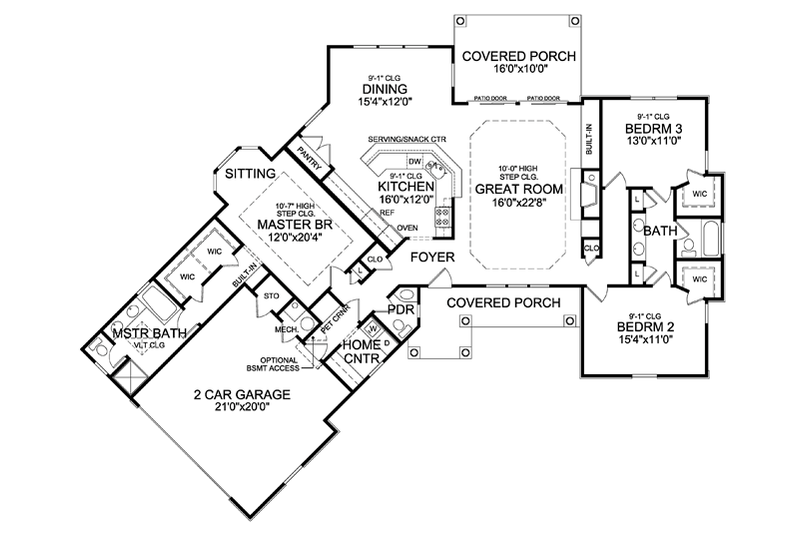

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 63' 8"

Height : 20'

Width : 81' 3"

Area

Basement Unfinished: 2065 sq/ft

First Floor: 2065 sq/ft height 9'

Garage: 431 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Conventional

Roof Type : Asphalt

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : Wood - 2x4

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Main Floor Laundry

Master Sitting Area

Mud Room

Open Floor Plan

Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath

Rooms

Bedroom 2:

width 15' 4" x depth 11'

Bedroom 3:

width 13' x depth 11'

Dining:

width 15' 4" x depth 12'

Garage:

431 sq/ft width 21' x depth 20'

Great Room:

width 16' x depth 22' 8"

Kitchen:

width 16' x depth 12'

Master Bedroom:

width 12' x depth 20' 4"

Porch - Rear:

160 sq/ft width 16' x depth 10'

Porch Front:

149 sq/ft

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$884.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$977.50

5 printed plan sets mailed to you.

8 Copy Set:
$1041.25

8 printed plan sets mailed to you.

Reproducible Set:
$1054.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1695.75

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$85.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$127.50

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$297.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$42.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets:
$42.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
