PLAN 140-166
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
This country design floor plan is 2398 sq ft and has 3 bedrooms and 3 bathrooms.
Floor Plans

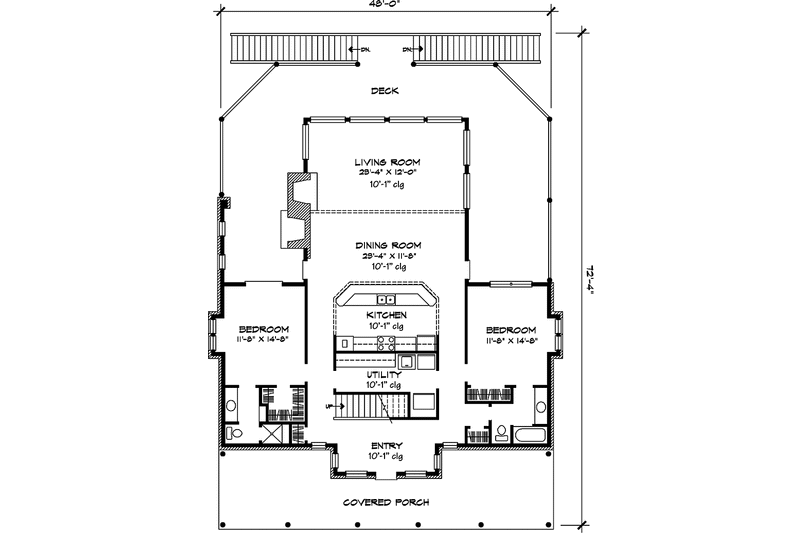

Floor Plan - Main Floor

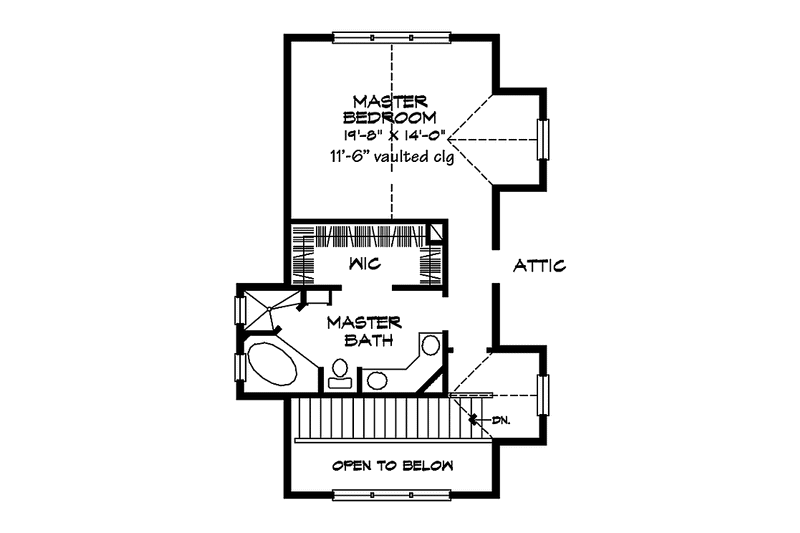

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 73'
Height : 29'
Width : 48'
Area
First Floor: 1833 sq/ft height 8' 1"
Second Floor: 565 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Master Sitting Area
Outdoor Spaces
Covered Front Porch
Deck
What's Included In This Plan Set
- Cover page
- Elevations set to 1/4" scale
- Dimensioned Floor plans set to 1/4" scale
- Roof plan: Overhead plan shows peaks, valleys and roof pitch
- Building Sections Interior Elevations: Cabinet and millwork details.
- Electrical floor plan layout
- Foundation plan
- General notes and details.
