Key Specs
2642
sq ft
4
Beds
2.5
Baths
2
Floors
3
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 320-1000
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 47'
Height : 30'
Width : 64'
Area
Basement Unfinished: 1310 sq/ft
First Floor: 1310 sq/ft
Garage: 700 sq/ft
Second Floor: 1332 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Sunroom
Upstairs Laundry
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms
Bedroom 2:
130 sq/ft width 10' x depth 13'
Bedroom 3:
120 sq/ft width 10' x depth 12'
Bedroom 4:
140 sq/ft width 10' x depth 14'
Dining Room:
130 sq/ft width 10' x depth 13'
Garage:
768 sq/ft width 32' x depth 24'
Great Room:
289 sq/ft width 17' x depth 17'
Master Suite:
224 sq/ft width 16' x depth 14'
Study:
156 sq/ft width 12' x depth 13'
Sun Room:
156 sq/ft width 12' x depth 13'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

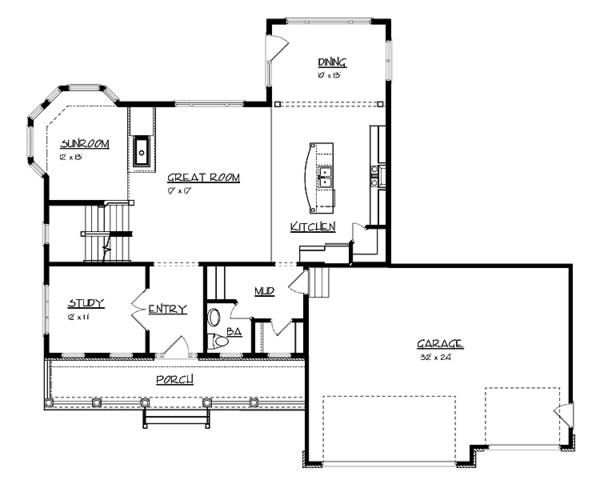

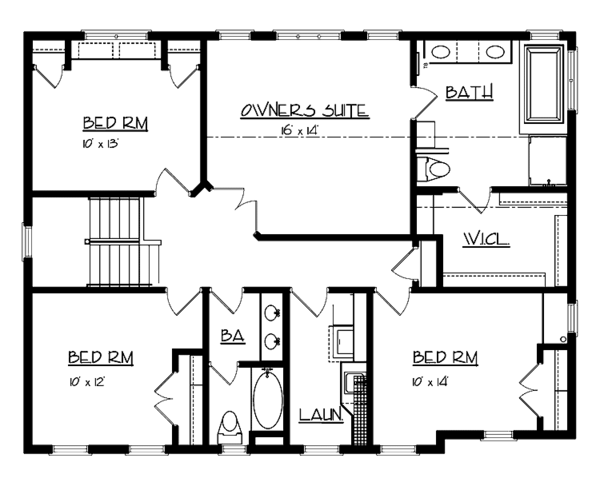

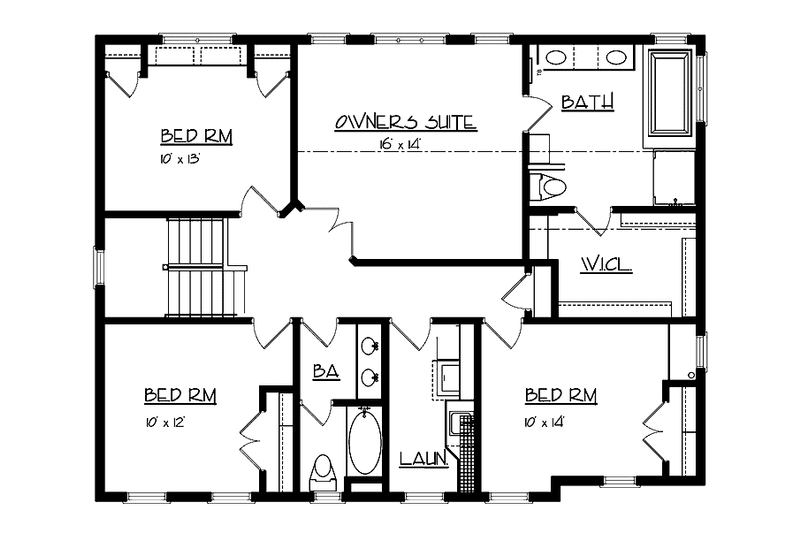

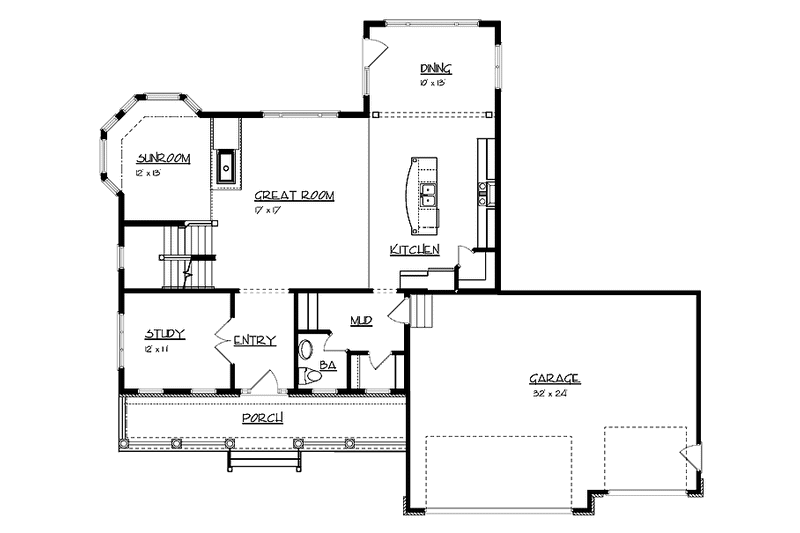

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$782.00
$1564.00
Foundation
$0.00
Framing
$0.00
Additional Options
$85.00
$33.15
$85.00
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
