PLAN 1019-4

Photographs may show modified designs.

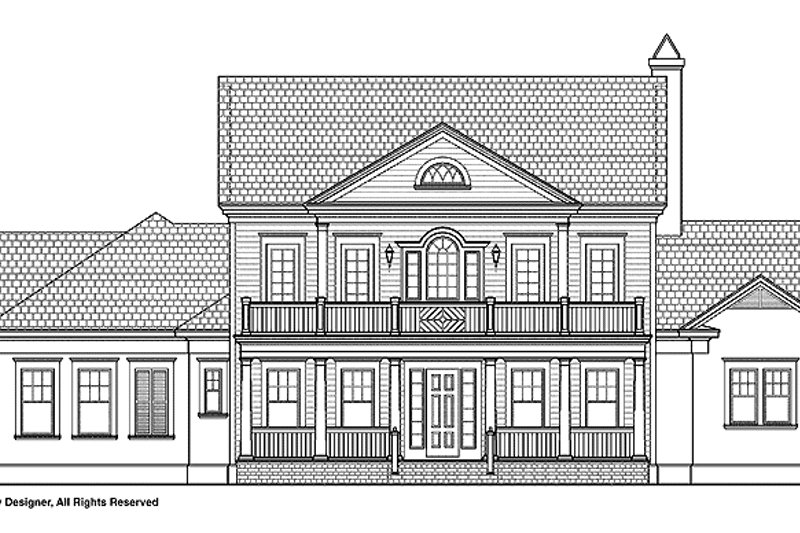

Architectural House Design - Colonial Exterior - Front Elevation Plan #1019-4

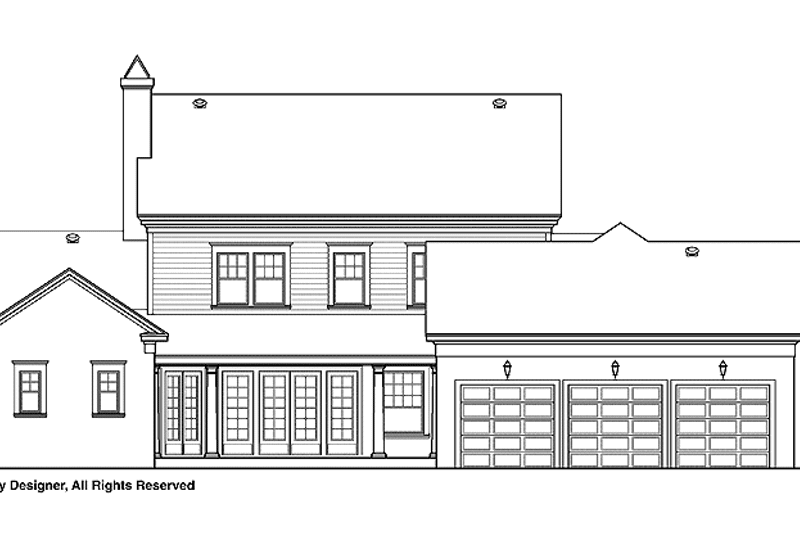

Architectural House Design - Colonial Exterior - Rear Elevation Plan #1019-4

Architectural House Design - Colonial Floor Plan - Main Floor Plan #1019-4

Architectural House Design - Colonial Floor Plan - Upper Floor Plan #1019-4

Jump to:
All (8)
Exterior (6)
Floor plans (2)

Get Personalized Help

Home > Style > Colonial House Plans

Key Specs

5164
sq ft

6
Beds

5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Audio Video Design

$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$170.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$637.50

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $2125.00

You save $375.00 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1019-4

Home > Style > Colonial House Plans

Key Specs

5164
sq ft

6
Beds

5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Step into this classic, open designed, 2-story home where you are greeted with unobstructed through views to the rear pool environment. All of the centrally located rooms offere views to the front as well as to the rear. The central core of the home is the perfect gathering area for the family. The bonus room above the garage can serve as the 6th bedroom for the eldest or be used as a playroom for the kids, which is accessible from the kitchen/breakfast area so you know that they are close by while you are busy making dinner. When the need arises, a guest master is located on the opposite side of the home as an ideal in-law-suite for the holidays. This plan has everything your growing family needs in this traditional classic colonial home.

Floor Plans

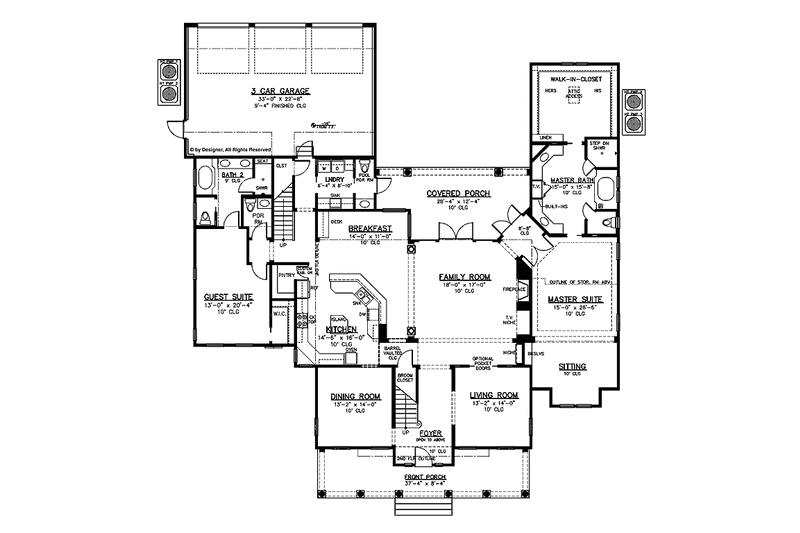

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 83' 4"

Height : 37'

Width : 78' 8"

Area

First Floor: 3337 sq/ft height 10'

Garage: 803 sq/ft height 10'

Second Floor: 1827 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding/Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Hobby Rec Room Game Room

Main Floor Laundry

Master Sitting Area

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 3:

166 sq/ft width 13' 4" x depth 12' 6"

Bedroom 4:

166 sq/ft width 13' 4" x depth 12' 6"

Bedroom 5:

173 sq/ft width 13' 4" x depth 13'

Breakfast:

154 sq/ft width 14' x depth 11'

Covered Porch:

349 sq/ft width 28' 4" x depth 12' 4"

Dining Room:

184 sq/ft width 13' 2" x depth 14'

Family Room:

306 sq/ft width 18' x depth 17'

Game Room:

351 sq/ft width 23' 8" x depth 14' 10"

Garage:

748 sq/ft width 33' x depth 22' 8"

Guest Suite:

264 sq/ft width 13' x depth 20' 4"

Guest Suite:

264 sq/ft width 13' x depth 20' 4"

Guest Suite:

345 sq/ft width 24' 8" x depth 14'

Kitchen:

232 sq/ft width 14' 6" x depth 16'

Laundry Room:

73 sq/ft width 8' 4" x depth 8' 10"

Living Room:

184 sq/ft width 13' 2" x depth 14'

Master Bathroom:

235 sq/ft width 15' x depth 15' 8"

Master Suite:

397 sq/ft width 15' x depth 26' 6"

Mechanical/Equipment Room:

101 sq/ft width 9' x depth 11' 4"

Storage:

149 sq/ft width 16' x depth 9' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-222-1762

Plan Set

Reproducible Set:
$2125.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2635.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Stem Wall Foundation:
$0.00

Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$170.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$637.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
