Key Specs
5350
sq ft
5
Beds
5
Baths
2
Floors
3
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1019-5
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

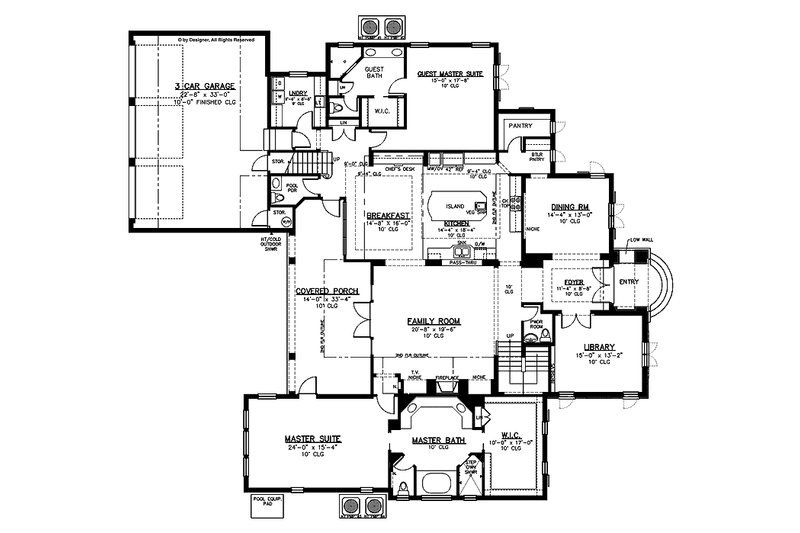

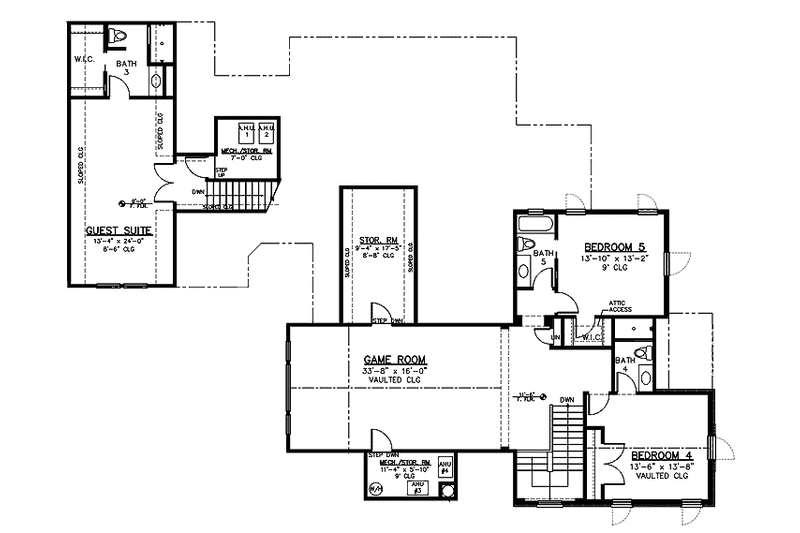

Floor Plans
Full Specs & Features
Dimension
Depth : 88' 4"
Height : 34' 2"
Width : 80'
Area
First Floor: 3593 sq/ft height 10'
Garage: 851 sq/ft height 10'
Second Floor: 1757 sq/ft height 10'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 4:
184 sq/ft width 13' 6" x depth 13' 8"
Bedroom 5:
182 sq/ft width 13' 10" x depth 13' 2"
Breakfast:
234 sq/ft width 14' 8" x depth 16'
Covered Porch:
466 sq/ft width 14' x depth 33' 4"
Dining Room:
186 sq/ft width 14' 4" x depth 13'
Family Room:
403 sq/ft width 20' 8" x depth 19' 6"
Game Room:
538 sq/ft width 33' 8" x depth 16'
Garage:
748 sq/ft width 22' 8" x depth 33'
Guest Suite:
319 sq/ft width 13' 4" x depth 24'
Kitchen:
262 sq/ft width 14' 4" x depth 18' 4"
Laundry Room:
82 sq/ft width 9' 6" x depth 8' 8"
Library:
197 sq/ft width 15' x depth 13' 2"
Master Suite:
367 sq/ft width 24' x depth 15' 4"
Master Suite:
265 sq/ft width 15' x depth 17' 8"
Master Walk-In Closet:
170 sq/ft width 10' x depth 17'
Mechanical/Equipment Room:
66 sq/ft width 11' 4" x depth 5' 10"
Storage:
162 sq/ft width 9' 4" x depth 17' 5"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

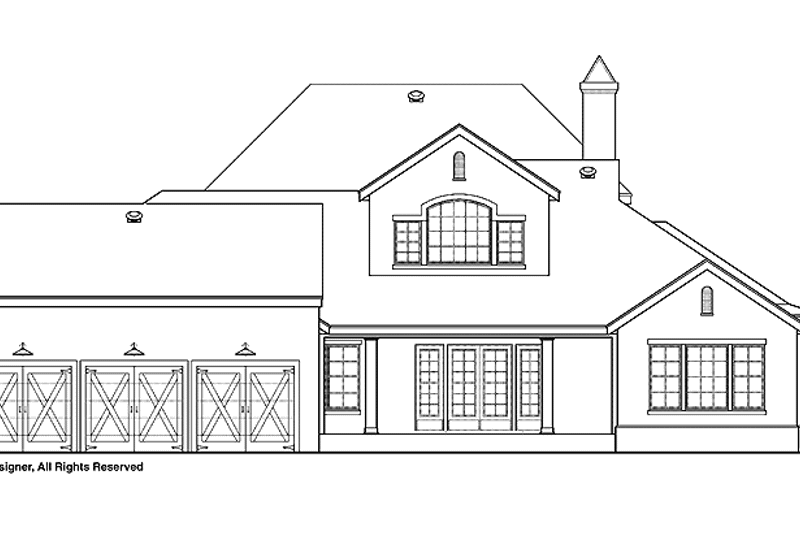

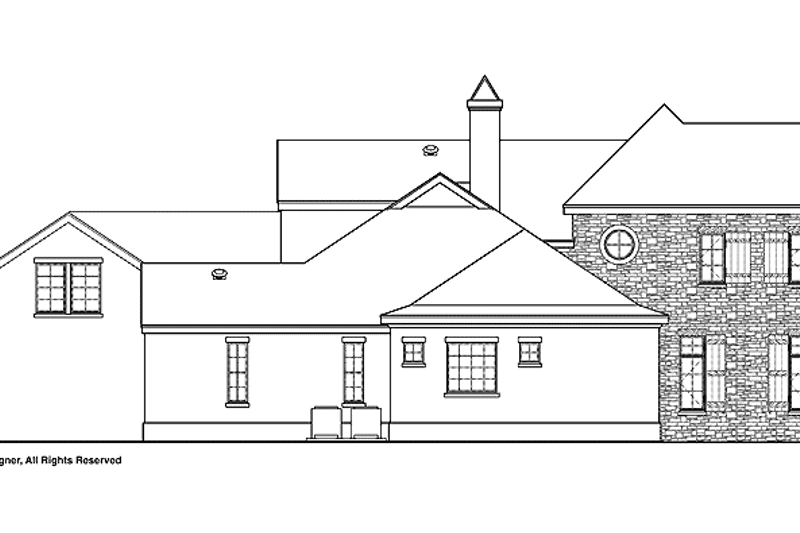

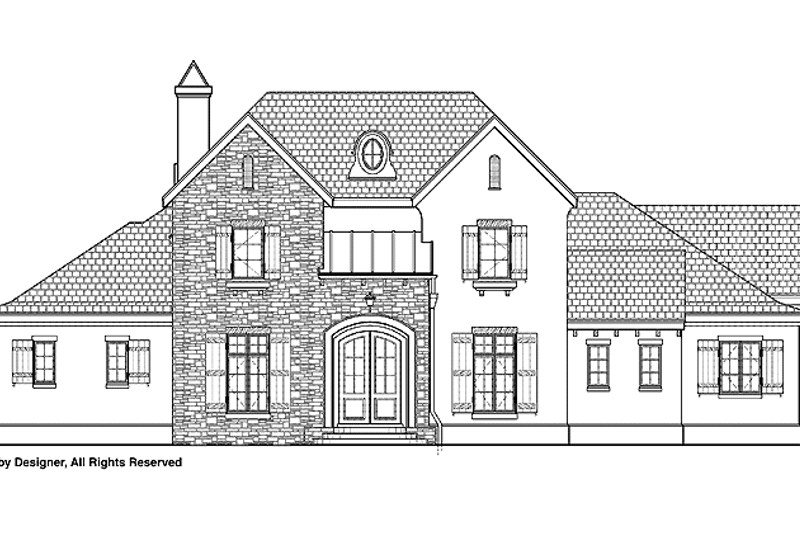

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$2125.00
$2635.00
Foundation
$0.00
Framing
$0.00
Additional Options
$85.00
$33.15
$170.00
$637.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
